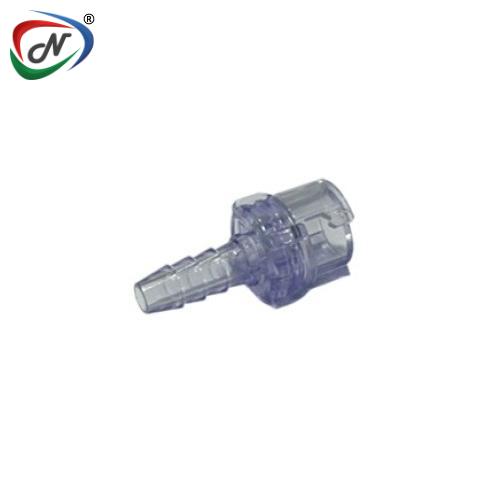

SMF0291 1/8 HOSE BARB NON-VALVED IN-LINE CLASS VI POLYCARBONATE COUPLING BODY
#NSSP004998
Product Description
SMF0291 1/8 HOSE BARB NON-VALVED IN-LINE CLASS VI POLYCARBONATE COUPLING BODY
The Twist-to-Connect technology by Colder is incorporated in the design of the Colder SMC Series Couplings, which are known for their exceptional performance. These couplings feature a quarter-turn latch that audibly clicks, providing a reliable and secure connection. Additionally, the tubing can rotate freely, enhancing flexibility. Despite their compact size, the SMC Series Couplings are available in a range of materials including acetal, polypropylene, and ABS plastic, ensuring suitability for various applications.
Main Features:
- Material: Polycarbonate
- Material Finish: Molded Purple
- Pressure Range: Vacuum to 100 psi, 6.9 bar
- Color: Purple Tint
- Mounting Option: Free Floating
- Sterilization Method: Gamma
- Temperature Range: -40°F - 250°F (-40°C - 121°C)
- Seal Options: BUNA-N, USP Class V, ADCF
- Valve Option: Non-Valved
- Body Type: Insert
- Bag Qty: 250
COUPLING BODY – Polycarbonate
TERMINATION | IN-LINE HOSE BARB |
TUBING/THREAD SIZE | 1/8" ID |
METRIC EQ | 3.2mm ID |
STRAIGHT THRU | SMF0291 |
A (Height/Diameter) | 0.48 (12.2) |
B (Total Length) | 0.90 (22.9) |
*All measurements are in inches (millimetres) unless otherwise noted. ?Tubing must meet stated inside and outside diameters.
WARNING: It is the customer's responsibility to test the suitability of CPC products in their own application conditions.
Note: Image is just for ref.
Click to download : CPC-SMC-Spec-SheetMedical (Core) & Thermal Industry
Additional Information
| NESPL Code | NSSP004998 |
| Manufacturer Code | SMF0291 |
| Manufacturer | CPC Quick Connect & Disconnect Solutions |
| Type | Quick Fittings |
