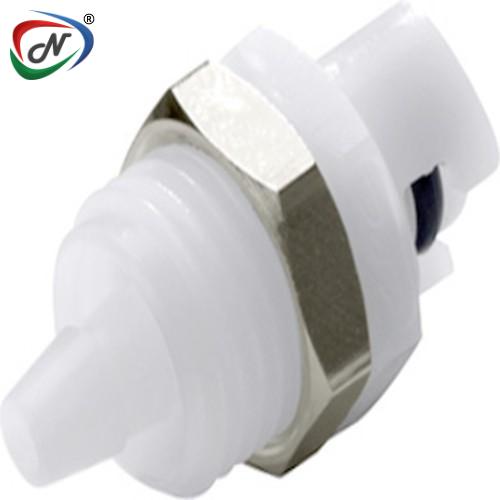

SMMPM02 1/8 Hose Barb Non-Valved Panel Mount Coupling Insert
#NSSP003119
Product Description
SMMPM02
1/8 Hose Barb Non-Valved Panel Mount Coupling Insert
The Twist-to-Connect technology by Colder is incorporated in the design of the Colder SMC Series Couplings, which are known for their exceptional performance. These couplings feature a quarter-turn latch that audibly clicks, providing a reliable and secure connection. Additionally, the tubing can rotate freely, enhancing flexibility. Despite their compact size, the SMC Series Couplings are available in a range of materials including acetal, polypropylene, and ABS plastic, ensuring suitability for various applications.
Main Features:
- Material: Acetal
- Material Finish: Natural
- Pressure Range: Vacuum to 100 psi, 6.9 bar
- Color: White
- Mounting Option: Panel Mount
- Temperature Range: -40°F - 180°F (-40°C - 82°C)
- Seal Options: BUNA-N
- Valve Option: Non-Valved
- Body Type: Insert
- Bag Qty: 50
COUPLING INSERTS - Acetal
TERMINATION | PANEL MOUNT HOSE BARB |
TUBING/THREAD SIZE | 1/8" ID |
METRIC EQ. | 3.2 mm ID |
STRAIGHT THRU | SMMPM02 |
A(Height/Diameter) | 0.5 (12.7) |
B( Total Length) | 0.9 (22.9) |
WARNING: It is the customer's responsibility to test the suitability of CPC products in their own application conditions.
Note: Image is just for ref.
Click to download : SMMPM02 Hose Barb Non-Valved Panel Mount Coupling Insert Click to download : CPC-SMC-Spec-SheetMedical (Core) & Thermal Industry
Additional Information
| NESPL Code | NSSP003119 |
| Manufacturer Code | SMMPM02 |
| HSN Code | 39174000 |
| Manufacturer | CPC Quick Connect & Disconnect Solutions |
| Weight | 0.002kg |
| Type | Quick Fittings |
