SMM01 1/16 Hose Barb Non-Valved Acetal Coupling Insert
#NSSP003179
Product Description
SMM01 1/16 Hose Barb Non-Valved Acetal Coupling Insert
The
Twist-to-Connect technology by Colder is incorporated in the design of the
Colder SMC Series Couplings, which are known for their exceptional performance.
These couplings feature a quarter-turn latch that audibly clicks, providing a
reliable and secure connection. Additionally, the tubing can rotate freely,
enhancing flexibility. Despite their compact size, the SMC Series Couplings are
available in a range of materials including acetal, polypropylene, and ABS
plastic, ensuring suitability for various applications.
Main Features:
- Material: Acetal
- Material Finish: Natural
- Pressure Range: Vacuum to 100 psi, 6.9 bar
- Color: White
- Mounting Option: Free Floating
- Temperature Range: -40°F - 180°F (-40°C - 82°C)
- Seal Options: BUNA-N
- Valve Option: Non-Valved
- Body Type: Insert
- Bag Qty: 50

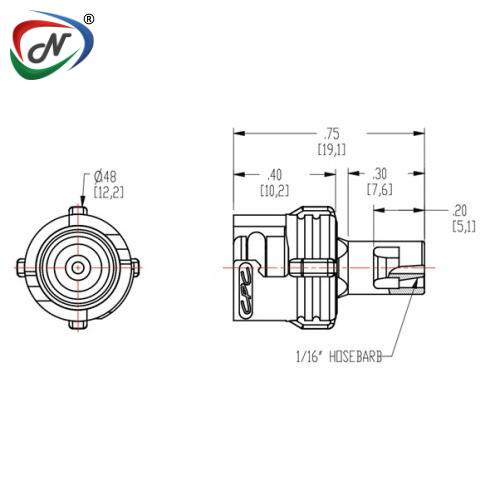

COUPLING INSERT - ACETAL
TERMINATION | PANEL MOUNT HOSE BARB |
TUBING/THREAD SIZE | 1/16" ID |
METRIC EQ | 1.6mm ID |
STRAIGHT THRU | SMM01 |
SHUTOFF | SMFPMD01 |
A (Height/Diameter) | 0.48 (12.2) |
B (Total Length) | 0.75 (19.1) |
*All measurements are in inches (millimeters) unless otherwise noted. Tubing must meet stated inside and outside diameters.
WARNING: It is the customer's responsibility to test the suitability of CPC products in their own application conditions.

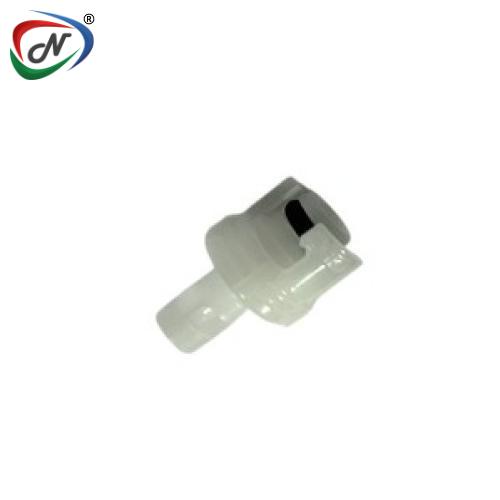

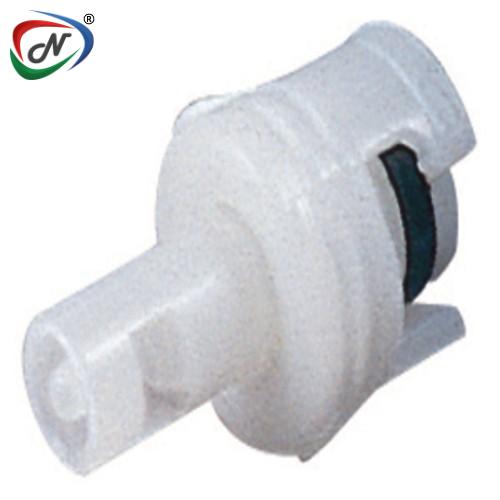

Note: Image is just for ref.
Click to download : CPC-SMC-Spec-SheetMedical (Core) & Thermal Industry
Additional Information
| NESPL Code | NSSP003179 |
| Manufacturer Code | SMM01 |
| HSN Code | 39174000 |
| Manufacturer | CPC Quick Connect & Disconnect Solutions |
| Weight | 0.001kg |
| Type | Quick Fittings |
