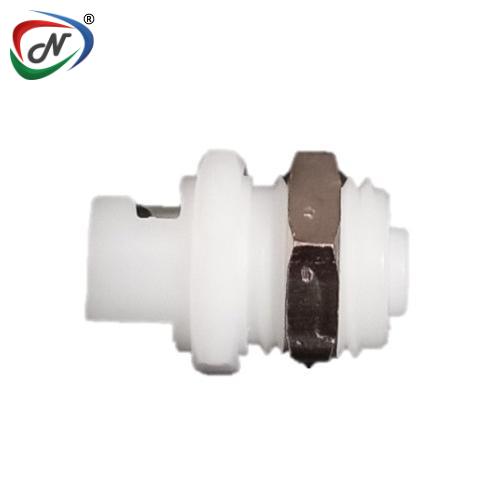

SMMPM01 1/16 Hose Barb Non-Valved Panel Mount Acetal Coupling Insert
#NSSP003181
Product Description
SMMPM01 1/16 Hose Barb Non-Valved Panel Mount Acetal Coupling Insert
Main Features:
- The SMC Series couplings offer a twist-to-connect mechanism, which serves as a dependable and safer option compared to luer-type connections.
- This coupling design enables the tubing to rotate freely upon connection, preventing any potential kinks or accidental disconnections during usage.
- Moreover, the SMC Series couplings are equipped with the advanced IdentiQuik® technology, which incorporates RFID functionality.
- By utilizing RFID-based IdentiQuik couplings, fluid handling processes can be revolutionized in terms of control, protection, and efficiency.
- The IdentiQuik technology facilitates the seamless transfer of both fluid and information, enabling the identification of device types or connected media, ensuring accurate line connections, and capturing essential fluid and product data.
Main Specifications:
- Material: Acetal
- Material Finish: Natural
- Pressure Range: Vacuum to 100 psi, 6.9 bar
- Color: White
- Mounting Option: Panel Mount
- Temperature Range: -40°F - 180°F (-40°C - 82°C)
- Seal Options: BUNA-N
- Valve Option: Non-Valved
- Body Type: Insert
- Bag Qty: 50
TERMINATION | PANEL MOUNT HOSE BARB |
TUBING/THREAD SIZE | 1/16" ID |
METRIC EQ | 1.6mm ID |
STRAIGHT THRU | SMMPM01 |
A (Height/Diameter) | 0.5 (12.7) |
B (Total Length) | 0.75 (19.1) |
*All measurements are in inches (millimeters) unless otherwise noted. Tubing must meet stated inside and outside diameters.
WARNING: It is the customer's responsibility to test the suitability of CPC products in their own application conditions.
Note: Image is just for ref.
Click to download : SMMPM01 1/16 Hose Barb Non-Valved Panel Mount Acetal Coupling Insert Spec Sheet Click to download : Dimensions/DesignMedical (Core) & Thermal Industry
Additional Information
| NESPL Code | NSSP003181 |
| Manufacturer Code | SMMPM01 |
| HSN Code | 39174000 |
| Manufacturer | CPC Quick Connect & Disconnect Solutions |
| Weight | 0.002kg |
| Type | Quick Fittings |
Related Products
SMMPM02 1/8 Hose Barb Non-Valved Panel Mount Coupling Insert
NESPL Code - #NSSP003119

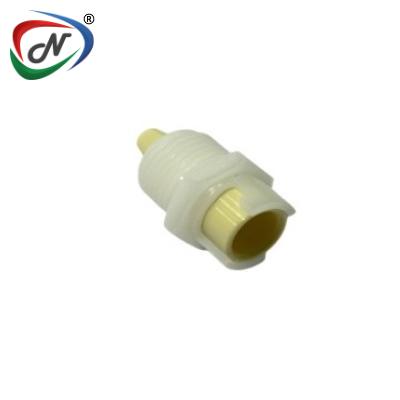

SMFPM0212 1/8 Hose Barb Non-Valved Panel Mount Coupling Body
NESPL Code - #NSSP003118
SXM42M3 Non-Valved Coupling Insert with 3mm Hose Barb Male Fitting Inserts
NESPL Code - #NSSP003110
SXF17M3 Non-Valved Coupling Body with 3mm Hose Barb Female Fitting Bodies
NESPL Code - #NSSP003109
SMF02 1/8 Hose Barb Non-Valved In-Line Acetal Coupling Body
NESPL Code - #NSSP003189
SMMM5 5mm Hose Barb Non-Valved Acetal Coupling Insert
NESPL Code - #NSSP003196
SMM01 1/16 Hose Barb Non-Valved Acetal Coupling Insert
NESPL Code - #NSSP003179

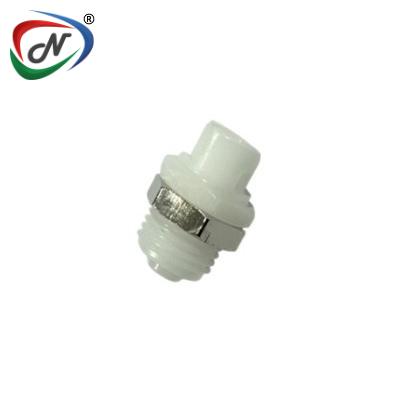

SMFPM01 1/16 Hose Barb Non-Valved Panel Mount Acetal Coupling Body
