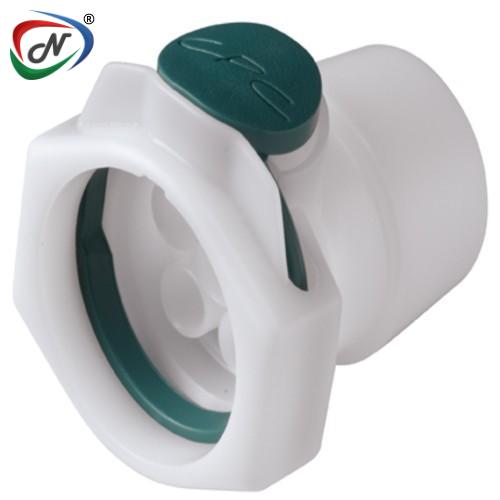

SXF17M3 Non-Valved Coupling Body with 3mm Hose Barb Female Fitting Bodies
#NSSP003109
Product Description
SXF17M3
Non-Valved Coupling Body with 3mm Hose Barb Female Fitting Bodies
Key Features:
- Effortless and reliable quick connects and disconnects for up to ten separate fluid and electrical lines with the slide latch mechanism.
- Convenient single point for bundling lines together, providing a visually appealing and space-saving solution.
- Versatile options for mounting in panels or inline configurations, with the added convenience of valves on the body.
- Flexibility to connect dual fluid lines simultaneously or independently, based on your specific requirements.
- Ensured tubing orientation by keying the coupling body and insert, ensuring a secure and precise fit.
- Accommodation of different fluid and tubing sizes with the choice of acetal or polypropylene materials in various sizes.
- Superior performance with an optimal flow to size ratio, ensuring efficient and effective operation.
Main Specifications:
- Material: Acetal
- Material Finish: Natural
- Pressure Range: Vacuum to 100psi, 6.9 bar per line
- Color: White
- Mounting Option: Free Floating
- Temperature Range: -40°F - 180°F (-40°C - 82°C)
- Valve Spring: 316 Stainless Steel
- Valve Option: Non-Valved
- Body Type: Body
- Bag Qty: 10
|
Features |
Benefits |
||
|
Multi-line connection |
Fast, efficient
operation |
||
|
Separate flow
paths |
Pressure
and/or vacuum in one coupling |
||
|
Insert is keyed to
body |
Ensures correct line
orientation |
||
*All measurements are in inches (millimetres) unless otherwise noted.
WARNING: It is the customer's responsibility to test the suitability of CPC products in their own application conditions.
Note: Image is just for ref.
Click to download : Dimensions/Design Medical (Core) & Thermal Industry
Additional Information
| NESPL Code | NSSP003109 |
| Manufacturer Code | SXF17M3 |
| HSN Code | 39174000 |
| Manufacturer | CPC Quick Connect & Disconnect Solutions |
| Weight | 0.024kg |
| Type | Quick Fittings |
