SMF02 1/8 Hose Barb Non-Valved In-Line Acetal Coupling Body
#NSSP003189
Product Description

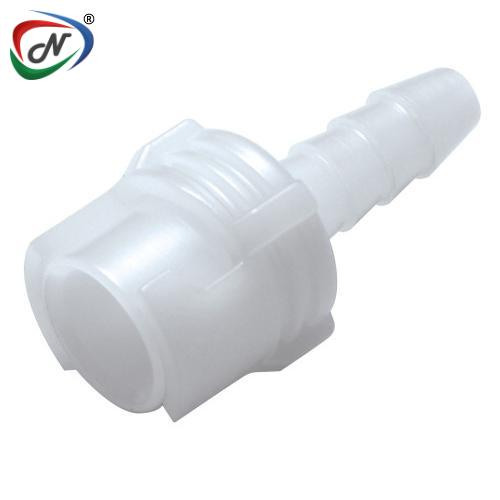

SMF02 1/8 Hose Barb Non-Valved In-Line Acetal Coupling Body
The Twist-to-Connect technology by Colder is incorporated in the design of the Colder SMC Series Couplings, which are known for their exceptional performance. These couplings feature a quarter-turn latch that audibly clicks, providing a reliable and secure connection. Additionally, the tubing can rotate freely, enhancing flexibility. Despite their compact size, the SMC Series Couplings are available in a range of materials including acetal, polypropylene, and ABS plastic, ensuring suitability for various applications.
Main Specifications:
- Material: Acetal
- Material Finish: Natural
- Color: White
- Mounting Option: Free Floating
- Temperature Range: -40°F - 180°F (-40°C - 82°C)
- Valve Option: Non-Valved
- Body Type: Body
- Bag Qty: 50
COUPLING BODY – Acetal
TERMINATION | IN-LINE HOSE BARB |
TUBING/THREAD SIZE | 1/8" ID |
METRIC EQ | 3.2mm ID |
STRAIGHT THRU | SMF02 |
SHUTOFF | SMFD02 |
A (Height/Diameter) | 0.48 (12.2) |
B (Total Length) | 0.90 (22.9) |
*All measurements are in inches (millimetres) unless otherwise noted. Tubing must meet stated inside and outside diameters.
WARNING: It is the customer's responsibility to test the suitability of CPC products in their own application conditions.
Note: Image is just for ref.
Click to download : CPC-SMC-Spec-SheetMedical (Core) & Thermal Industry
Additional Information
| NESPL Code | NSSP003189 |
| Manufacturer Code | SMF02 |
| HSN Code | 39174000 |
| Manufacturer | CPC Quick Connect & Disconnect Solutions |
| Weight | 0.001kg |
| Type | Quick Fittings |
