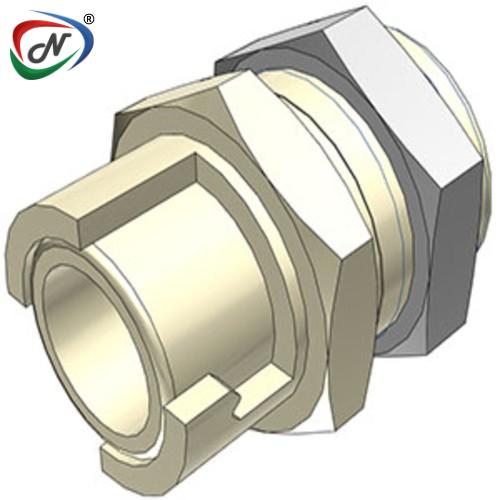

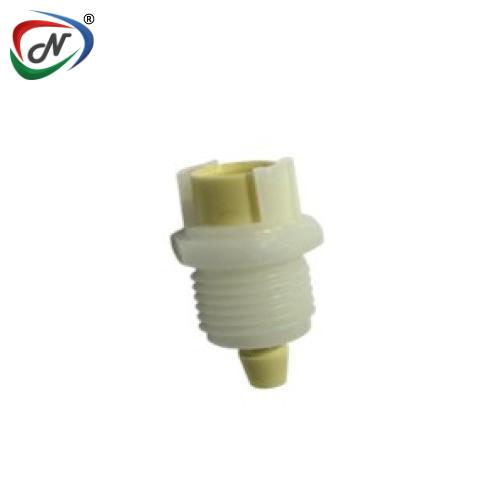

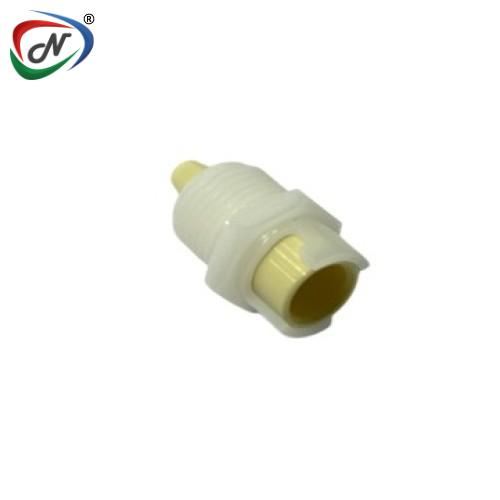

SMFPM0212 1/8 Hose Barb Non-Valved Panel Mount Coupling Body
#NSSP003118
Product Description
SMFPM0212
1/8 Hose Barb Non-Valved Panel Mount Coupling Body
Main Features:
- The SMC Series couplings offer a twist-to-connect mechanism, which serves as a dependable and safer option compared to luer-type connections.
- This coupling design enables the tubing to rotate freely upon connection, preventing any potential kinks or accidental disconnections during usage.
- Moreover, the SMC Series couplings are equipped with the advanced IdentiQuik® technology, which incorporates RFID functionality.
- By utilizing RFID-based IdentiQuik couplings, fluid handling processes can be revolutionized in terms of control, protection, and efficiency.
- The IdentiQuik technology facilitates the seamless transfer of both fluid and information, enabling the identification of device types or connected media, ensuring accurate line connections, and capturing essential fluid and product data.
Main Specifications:
- Material: Polypropylene
- Material Finish: Almond
- Color: White
- Mounting Option: Panel Mount
- Temperature Range: 32°F - 180°F (0°C - 82°C)
- Valve Option: Non-Valved
- Body Type: Body
- Bag Qty: 50
COUPLING BODIES - Acetal
TERMINATION | PANEL MOUNT HOSE BARB |
TUBING/THREAD SIZE | 1/8" ID |
METRIC EQ. | 3.2 mm ID |
STRAIGHT THRU | SMFPM0212 |
SHUTOFF | SMFPMD02 |
A(Height/Diameter) | 0.58 (14.7) |
B( Total Length) | 0.90 (22.9) |
C (Hex Size on Main Component) | 1/2 (12.7) |
*All measurements are in inches (millimetres) unless otherwise noted. Tubing must meet stated inside and outside diameters.
WARNING: It is the customer's responsibility to test the suitability of CPC products in their own application conditions.
Click to download : CPC-SMC-Spec-SheetMedical (Core) & Thermal Industry
Additional Information
| NESPL Code | NSSP003118 |
| Manufacturer Code | SMFPM0212 |
| HSN Code | 39174000 |
| Manufacturer | CPC Quick Connect & Disconnect Solutions |
| Weight | 0.002kg |
| Type | Quick Fittings |
Related Products

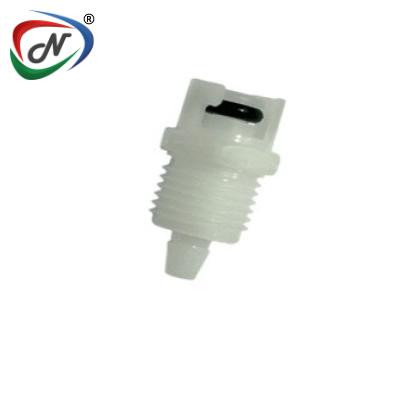

SMMPM02 1/8 Hose Barb Non-Valved Panel Mount Coupling Insert
