2830051CWFV MixRite 3.5 Dosing Pump

#NESPLTEFENPUMP-4

Product Description

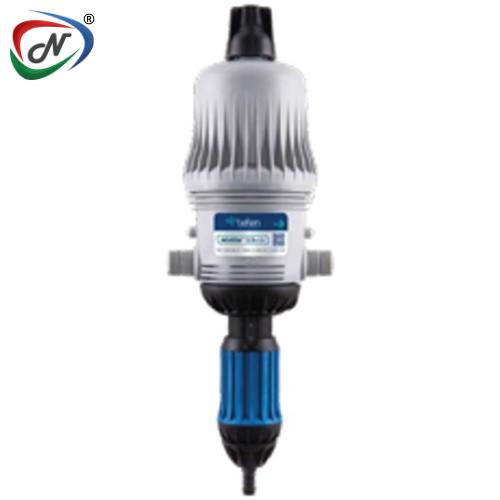

2830051CWFV MixRite 3.5 Dosing Pump

The Tefen MixRite 3.5 Dosing Pump (model 2830051CWFV) is a self-powered, water-driven proportional injector ideal for agriculture, irrigation, livestock and industrial applications. It operates without electricity, dosing additives directly into the flow of water at a stable ratio regardless of pressure or flow changes. It supports water flow rates from 10 to 3,500 L/h and pressures between 0.2 to 8 bar. Built with corrosion-resistant materials such as PP+FG, it offers durability, low maintenance and precise injection control.

Main Features:

Water-driven, non-electric design for energy-free, automatic dosing.

Adjustable injection ratio ensures precise and consistent additive mixing.

Wide flow range (10–3,500 L/h) suitable for diverse applications.

Operates efficiently under 0.2–8 bar pressure with stable performance.

Durable, corrosion-resistant construction (PP + FG) for long-lasting reliability.

Main Applications:

Car Wash

Cutting Oil

Industrial

Sanitation and Hygiene

Main Specifications:

Thread Type	BSPT
MixRite Type	CW
Working Pressure	0.2–8 bar
Water Pressure	0.2–8 bar [3 to 116 psi]
ON OFF System	Yes [Manual]
Dosage Rate	0.5%–5%
Flow Rate Range	10–3500 l/h [0.04 to 15.5 gpm]
Overview	MixRite is a water driven proportioning injector for pumping an additive into a water line at a consistent induction rate over varying water pressure and flow rates.
Min Injection Per Hour	0.05 l/h [0.013 gph]
Max Injection Per Hour	175 l/h [46.23 gph]
Application Segment	Industrial
Flow Rate Range filter	1500-4800 l/h (396-1268 gph)\|20-3400 l/h (5-898 gph)
Material	PP+FG
Sub Application Segment	Sanitation and Hygiene\|Car Wash\|Cutting Oil
Weight	4 pound [1.8 kg]
Connectors Diameter	3/4"
Gross Weight	1.9 kg [4.19 lbs]
