2801022CL00 MixRite 1 Dosing Pump

#NESPLTEFENPUMP-2

Product Description

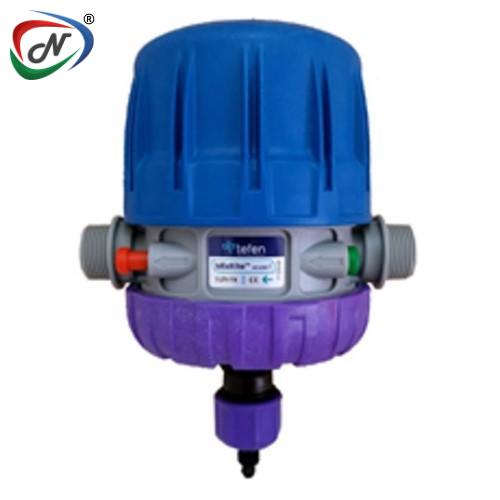

The TEFEN MixRite1 Dosing Pump (model “2801022CL00”) is a compact, water-driven proportional injector designed for precise additive dosing in fluid lines. It operates with no electricity, maintaining a consistent injection rate even as flow and pressure vary. Suitable for chemical, irrigation or chlorination applications, it supports 0.2 % fixed dosage at flow rates from 20–1000 L/h and pressures from 0.2–8 bar.

Main Features:

Water-driven, non-electric operation for reliable, energy-free dosing.
Fixed 0.2% injection rate ensuring consistent, accurate mixing.
Wide flow range (20–1000 L/h) for versatile applications.
Durable construction resistant to chemicals and corrosion.
Simple installation and maintenance for efficient operation and long service life.

Main Applications:

Industrial

Water Treatment /Chlorination

Main Specifications:

Thread Type	BSPT
Working Pressure	0.2–8 bar
Water Pressure	0.2–8 bar [3 to 116 psi]
ON OFF System	Yes [Manual]
Dosage Rate	0.2% [Fixed Rate]
Flow Rate Range	20–1000 l/h [0.09 to 4.4 gpm]
Chemical Resistance	Standard
Overview	MixRite is a water driven proportioning injector for pumping an additive into a water line at a consistent induction rate over varying water pressure and flow rates.
Min Injection Per Hour	0.04 l/h [0.01 gph]
Max Injection Per Hour	2 l/h [0.53 gph]
Application Segment	Industrial
Flow Rate Range filter	20-1000 l/h (5-264 gph)\|20-2400 l/h (5-634 gph)
Material	PP+FG
