2802040CL00 MixRite 2.5 Dosing Pump

#NESPLTEFENPUMP-3

Product Description

The Tefen MixRite 2.5 Dosing Pump (model 2802040CL00) is a water-driven, non-electric proportional injector ideal for mixing additives into water lines across irrigation, livestock, water treatment and industrial applications. It supports a wide flow range of 10–2,500 L/h and operates within pressures of 0.2–8 bar. Built from corrosion-resistant materials, it ensures consistent dosage (typically up to 4 %) regardless of fluctuating flow or pressure. Easy to install and maintain.

Main Features:

Water-driven, non-electric operation for efficient and eco-friendly dosing.
Adjustable dosing range up to 4% for precise chemical or additive injection.
Wide flow capacity (10–2,500 L/h) suitable for varied applications.
Operates under 0.2–8 bar pressure ensuring stable performance.
Corrosion-resistant construction for durability and long service life.

Main Applications:

Industrial

Water Treatment /Chlorination

Main Specifications:

Thread Type	BSPT
MixRite Type	CL
Working Pressure	0.2–8 bar
Water Pressure	0.2–8 bar [3 to 116 psi]
Coupling	3/4"
ON OFF System	No [Air Release]
Dosage Rate	0.4%–4%
Flow Rate Range	10-2500 l/h [0.04 to 11 gpm]
Chemical Resistance	Extreme
Overview	MixRite is a water driven proportioning injector for pumping an additive into a water line at a consistent induction rate over varying water pressure and flow rates.
Min Injection Per Hour	0.028 l/h [0.007 gph]
Max Injection Per Hour	100 l/h [26.5 gph]
Application Segment	Irrigation\|Industrial\|Livestock
Flow Rate Range filter	1500-4800 l/h (396-1268 gph)\|20-2400 l/h (5-634 gph)\|20-3400 l/h (5-898 gph)
Material	PP+FG
Sub Application Segment	Water Treatment

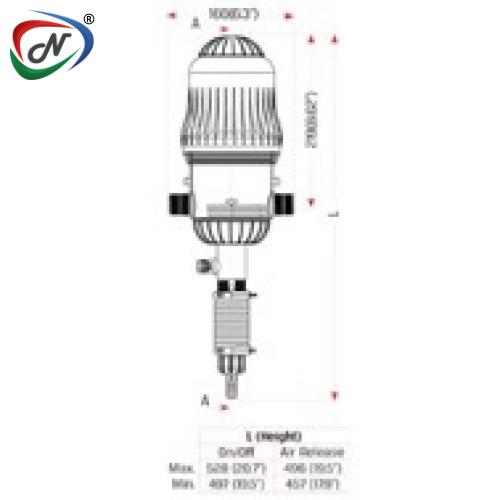

Dimensions	22" × 7.27"
Weight	4 pound [1.81 kg]
Air Release	Yes
Chemical Bypass	Standard
PulseRite	Optional
Foot Valve	Optional
