2809051CLPO MixRite TF-10 Dosing Pump

#NESPLTEFENPUMP-6

Product Description

2809051CLPO MixRite TF-10 Dosing Pump

The MixRite TF-10 (2809051CLPO) by MixRite / Tefen Flow & Dosing Technologies Ltd is a water powered proportional dosing pump built for large-flow systems. It operates without electricity and injects additives into a water line at a consistent ratio, unaffected by changes in pressure or flow. The model covers a flow range of 100–10,000L/h (0.1–10m³/h) and a working pressure between 1–8 bar. It supports dosing rates from 1% to 5% (depending on variant) and is constructed from chemical-resistant PP+FG materials.

Main Features:

Water-driven, non-electric operation for reliable, energy-free dosing.

Adjustable injection rate (1%–5%) for precise additive control.

High flow capacity (100–10,000 L/h) suitable for large-scale applications.

Operates under 1–8 bar pressure ensuring consistent performance.

Durable, chemical-resistant PP + FG construction for long-lasting use.

Main Applications:

Industrial

Irrigation /Fertigation

Water Treatment /Chlorination

Main Features:

Thread Type	BSP
MixRite Type	CL
Working Pressure	1-8 bar
Water Pressure	1–8 bar [14.5 to 116 psi]
ON OFF System	Yes [Manual]
Dosage Rate	1%–5%
Flow Rate Range	100–10000 l/h [0.44 to 45 gpm]
Overview	MixRite is a water driven proportioning injector for pumping an additive into a water line at a consistent induction rate over varying water pressure and flow rates.
Min Injection Per Hour	0.5 l/h [0.132 gph]
Max Injection Per Hour	500 l/h [132.5 gph]
Application Segment	Irrigation\|Industrial
Flow Rate Range filter	3500-9000 l/h (925-2378 gph)\|?5000–24000 l/h (1321–6340 gph)
Material	PP+FG
Sub Application Segment	Water Treatment

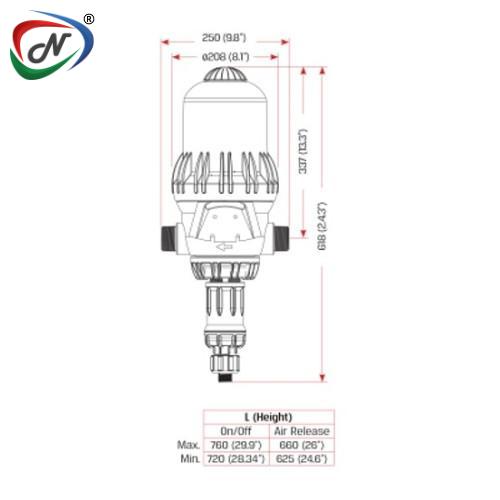

Dimensions	13.3" × 45.1"
Weight	16.3 pound [7.39 kg]
Min Pressure Loss	1 bar
Max Pressure Loss	8 bar
With Legs	Optional
Connection Type	Threaded
