28240510000 MixRite TF-25 Dosing Pump

#NESPLTEFENPUMP-7

Product Description

The MixRite TF-25 is a high-capacity, water-driven proportional dosing pump built for irrigation, water treatment or livestock water applications. It requires no external power, instead harnessing the flow of the carrier water to inject a precise additive dose. It accommodates flow rates from 0.2 to 25m³/h (200-25,000L/h) at 1-8bar pressure. Dosing ratios are adjustable (e.g., 0.1-1%, 0.3-2.5%, or 1-5.5%) depending on variant. Its chemical-resistant construction ensures durability and reliable performance in demanding environments.

Main Features:

Water-driven, non-electric operation for reliable, energy-free dosing.
Adjustable dosing ratios (0.1%–5.5%) for precise additive control.
High flow capacity (200–25,000 L/h / 0.2–25 m³/h) for large-scale applications.
Operates under 1–8 bar pressure ensuring consistent performance.
Durable, chemical-resistant construction for long-lasting and reliable use.

Main Applications:

Industrial

Irrigation /Fertigation

Main Specifications:

Thread Type	BSP
MixRite Type	STD
Working Pressure	1-8 bar
Water Pressure	1–8 bar [14.5 to 116 psi]
ON OFF System	Yes [Manual]
Dosage Rate	1%–5.5%
Flow Rate Range	200–25000 l/h [0.9 to 110 gpm]
Chemical Resistance	Standard
Overview	MixRite is a water driven proportioning injector for pumping an additive into a water line at a consistent induction rate over varying water pressure and flow rates.
Min Injection Per Hour	2.0 l/h [0.53 gph]
Max Injection Per Hour	1375 l/h [364 gph]
Application Segment	Irrigation\|Industrial
Flow Rate Range filter	5000–24000 l/h (1321–6340 gph)
Material	PP+FG

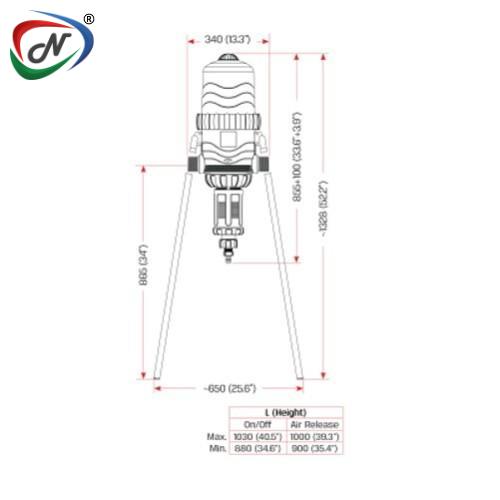

Dimensions	13.3" × 52.2"
Weight	34.2 pound [15.51 kg]
Chemical Bypass	Standard
With Legs	Yes
Connection Type	Threaded
