28050200000 MixRite TF-5 Dosing Pump

#NESPLTEFENPUMP-5

Product Description

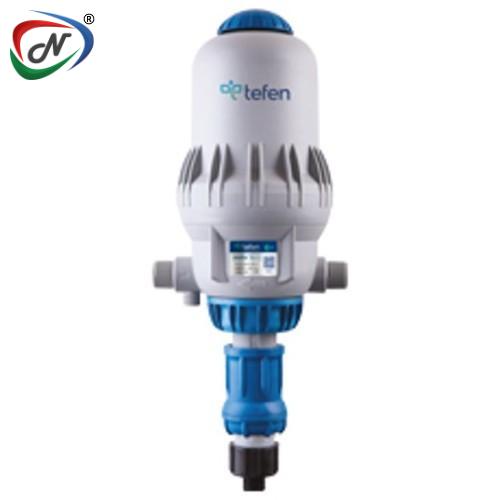

28050200000 MixRite TF-5 Dosing Pump

The MixRite TF-5 (model code 28050200000) from MixRite by Tefen Flow & Dosing Technologies Ltd is a water-driven proportional dosing injector designed for high-flow applications. It operates in the range of 100–5,000 L/h, under water pressures of 1–8 bar, enabling precise injection of additives at dosing rates from around 0.1 % to 5 %. Built with corrosion-resistant polypropylene plus fiberglass (PP+FG), it requires no electricity and adapts to changing flow/pressure conditions for applications in irrigation, fertigation, livestock watering and water treatment.

Main Features:

Water-driven, non-electric operation for efficient and reliable dosing.

Adjustable injection rate (0.1%–5%) for precise additive control.

Handles high flow rates (100–5,000 L/h) suitable for large-scale systems.

Operates under 1–8 bar pressure maintaining consistent performance.

Durable PP + FG construction providing excellent chemical and corrosion resistance.

Main Applications:
Irrigation /Fertigation

Main Specifications:

MixRite Type	STD
Working Pressure	1-8 bar
Water Pressure	1–8 bar [14.5 to 116 psi]
ON OFF System	No [Air Release]
Dosage Rate	0.2%–2%
Flow Rate Range	100–5000 l/h [0.44 to 22 gpm]
Min Injection Per Hour	0.1 l/h [0.26 gph]
Max Injection Per Hour	100 l/h [26.42 gph]
Application Segment	Irrigation\|Gardening
Flow Rate Range filter	1500-4800 l/h (396-1268 gph)\|3500-9000 l/h (925-2378 gph)
Material	PP+FG
Min Pressure Loss	1 bar
Max Pressure Loss	8 bar
Air Release	Yes
Foot Valve	Optional
With Legs	Optional
