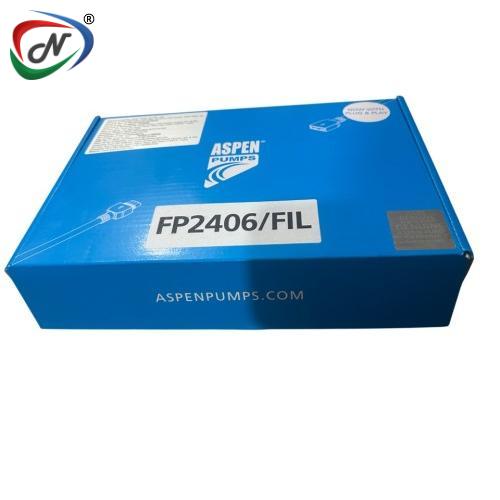

FP2406/FIL Aspen Aqua Mini Condensate Pump
#NSSP008299
Product Description
FP2406/FIL Aspen
Aqua Mini Condensate Pump

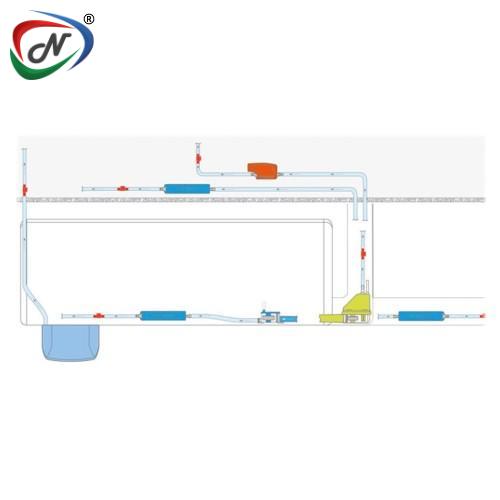

The Aspen Aqua Mini (Mini Aqua) is an ultra-slim, quiet condensate pump designed for split and ducted AC systems where space is limited. Its compact build allows installation inside trunking or behind indoor units, making it ideal for modern, slim AC designs. The pump delivers reliable condensate removal up to 12 L/h with a 10 m maximum head. With low noise, built-in safety features, and a complete installation kit, it provides efficient, discreet, and maintenance-friendly drainage.
Main
Features:
- Ultra-slim design for tight installation spaces.
- Quiet performance around 21 dB.
- Pumps up to 12 L/h with 10 m lift.
- Built-in safety float and thermal protection.
- Complete kit with reservoir, tubing, and anti-siphon device.
Main
Specifications:
- Data
Based: @ 230 VAC
50Hz
- Max.
flow: 12L/h
- Max. rec.
head: 10m
- Max.
suction lift: 2m
- dB (a): 21
- Power
supply: 230 VACS,
0.1A, 16W, 50/60Hz
- Rated: Non continuous
- Class: II appliance
- Max. unit
output: 16kW /
54,000Btu/h
- Max.
water temp: 40°C /
104°F
- Discharge
tube: 6mm ID
- IP
Protection: IP24
- Safety
switch: 3.0A
Normally closed
- Thermal
protection: ✓
- Fully potted: ✓
- Self-priming: ✓

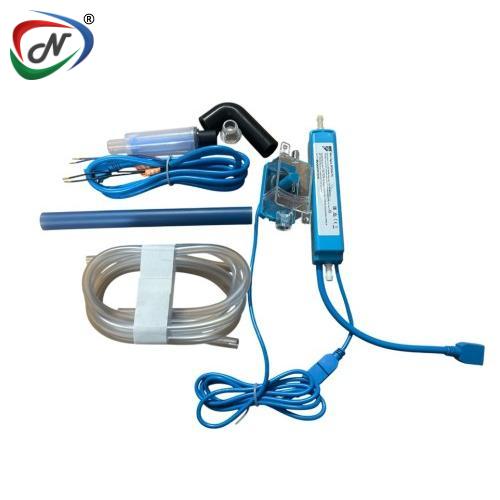

In the box:
- Mini
Aqua pump
- 1.5m
Plug & play power cable
- 16mm
Inline Filter
- Reservoir
(inc. filter, float, lid)
- 150mm
Vinyl breather tube 6mm ID
- Anti
siphon device
- 1.5m
Suction tube 6mm ID
- 220mm
Blue inlet hose 14mm ID
- Drain
connector kit
- Fixing
kit
- Install
manual
Click to download : 3425-2-miniaqua-manual-REV3-07-19 MANUAL Click to download : FP2406-2-TS-EN SPECS SHEET
REFRIGERATION / HVAC INDUSTRY
Additional Information
| NESPL Code | NSSP008299 |
| Manufacturer Code | FP2406/FIL |
| HSN Code | 84137010 |
| Manufacturer | ASPEN |
| Type | Pump |
Related Products

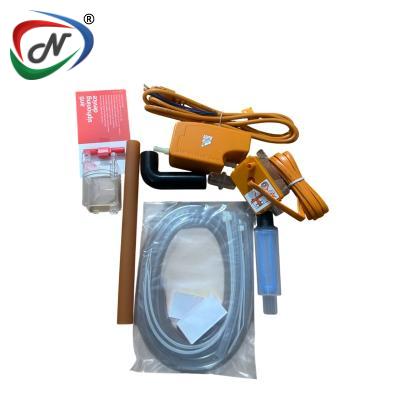

FP1056/2 Aspen Mini Orange Condensate Pump
NESPL Code - #NSSP008300

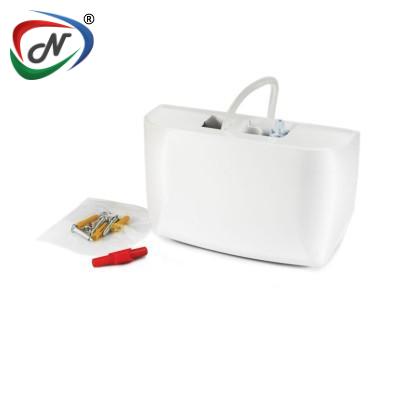

FP1080/2 Aspen Mini Blanc Condensate Removal Pump
NESPL Code - #NSSP008301

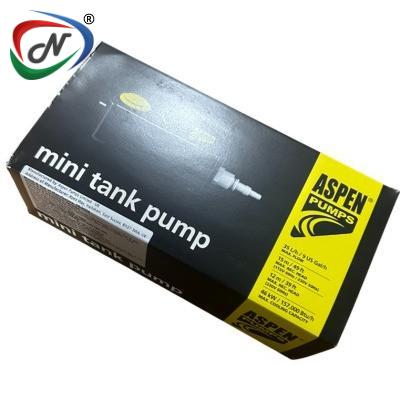

FP 1052/6 Aspen Mini Tank Condensate Pump
NESPL Code - #NSSP008303

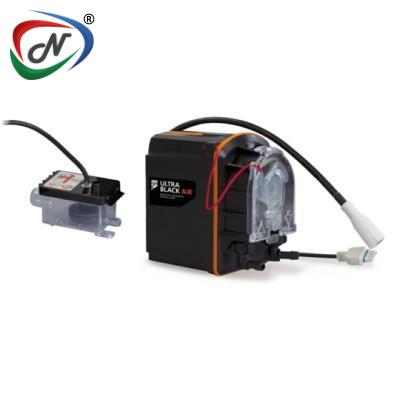

FP3390 Aspen Ultra Black Air Peristaltic Pump
NESPL Code - #NESPLASPENPUMP1

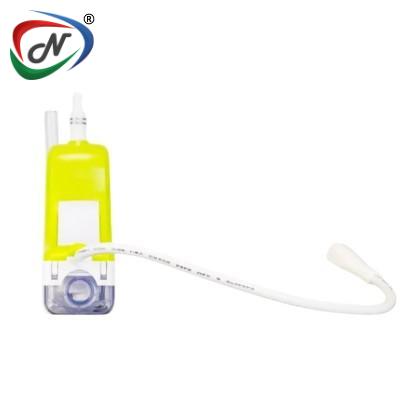

Aspen Silent+ Mini Lime Condensate Pump
