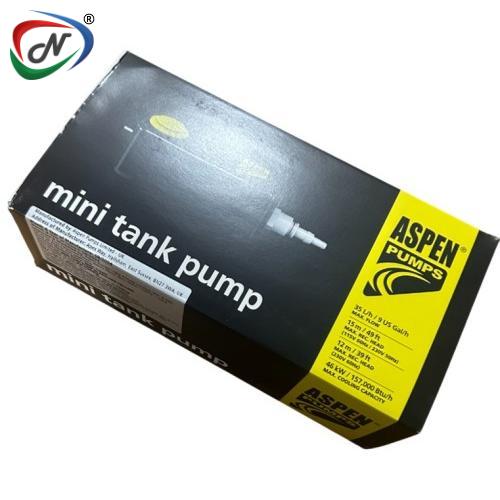

FP 1052/6 Aspen Mini Tank Condensate Pump

FP 1052/6 Aspen Mini Tank Condensate Pump

The Aspen Mini Tank is a compact, versatile condensate-removal pump designed for ducted, cassette, or floor-standing AC systems up to ~46 kW (157,000 Btu/h). It uses piston-technology to quietly collect and pump condensate water where gravity drain isn’t feasible. With a small in-built tank and robust build, it fits in drain pans, can be wall/floor or rod mounted, and works reliably to protect against water overflow without disturbing the AC unit.

Main Features:

• High flow rate — up to 35 L/hour (0 head), with 15 m maximum lift (≈ 10 L/h).

• Multiple installation options — wall-mounted, floor-mounted, suspended on rod, or placed inside a drain pan.

• Compact & Discreet — small 0.24 L tank and compact size make it suitable even where space is tight.

• Quiet Operation — around 35 dB(A) noise at 1 m.

• Built-in safety & durability — thermal protection, safety cut-out switch, IP65 water-resistant housing, and fully potted electronics.

Main Specifications:

• Data Based: @ 230 VAC 50Hz
• Max. flow: 35L/h
• Max. rec. head: 15m
• Tank Capacity: 0.24L
• dB (a): 35
• Power supply: 230 VAC, 0.11A, 16W, 50/60Hz
• Rated: Non continuous
• Class: II appliance
• Max. Unit Output: 46kW / 157,000Btu/h
• Max. Water Temp: 40°C / 104°F
• Inlets: x2 22mm, 12mm & 27mm
• Outlets: 6mm & 10mm
• IP Protection: IP65
• Safety switch: 3.0A Normally closed
• Thermal protection: ✓
• Fully potted: ✓
• Self-priming: ✕

In the Box:

• Mini Tank pump (including hard wired 1.5m power cable)
• x2 Rubber adaptors (21.5mm& 31mm)
• Anti siphon device
• Fixing kit
• Install manual
