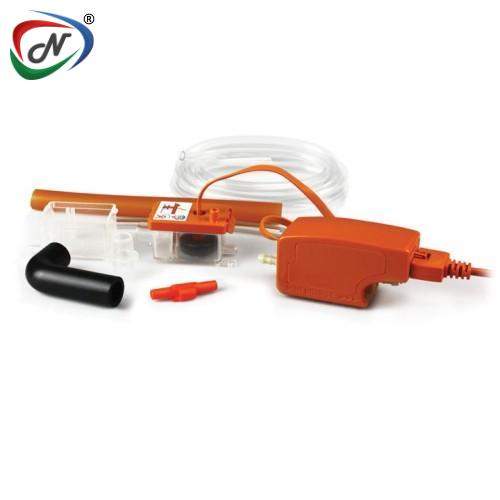

FP1056/2 Aspen Mini Orange Condensate Pump

FP1056/2 Aspen Mini Orange Condensate Pump

Aspen Mini Orange Condensate Pump — compact, reliable condensate-removal pump ideal for smaller air-conditioning systems like split, ducted, floor-standing or chassis units. It quietly evacuates condensate at up to 12 L/hour, lifts water up to 10 m, and supports units up to about 16 kW / 54,000 Btu/h. It’s easy to install (plug-and-play), uses minimal power, and comes complete with reservoir, hose, filter, inlet/outlet tubes and anti-siphon device, making it suitable for home or small commercial AC setups.

Key Features

• Very quiet operation — about 21 dB(A) @ 1 m.
• Max flow 12 L/hour, sufficient for standard residential or small commercial AC condensate drainage.
• Lifts condensate up to 10 m vertical head (suction lift to ~ 2 m) — workable for most indoor-to-outdoor or ceiling-void installs.
• Plug-and-play installation with included reservoir, hoses and anti-siphon device — minimal setup required.
• Compact size and low-power (230 V AC, ~ 16 W) — suitable for small to medium AC systems without heavy power draw.

Main Specifications:

·      Data Based: @ 230 VAC 50Hz

·      Max. flow: 12L/h

·      Max. rec. head: 10m

·      Max. suction lift: 2m

·      dB (a): 21

·      Power supply: 230 VACS,0.11A, 16W, 50/60Hz

·      Rated: Non continuous

·      Class: II appliance

·      Max. unit output: 16kW / 54,000Btu/h

·      Max. water temp: 40°C / 104°F

·      Discharge tube: 6mm ID

·      IP Protection: IP21

·      Safety switch: 3.0A Normally closed

·      Thermal protection: ✓

·      Fully potted: ✓

·      Self-priming: ✓

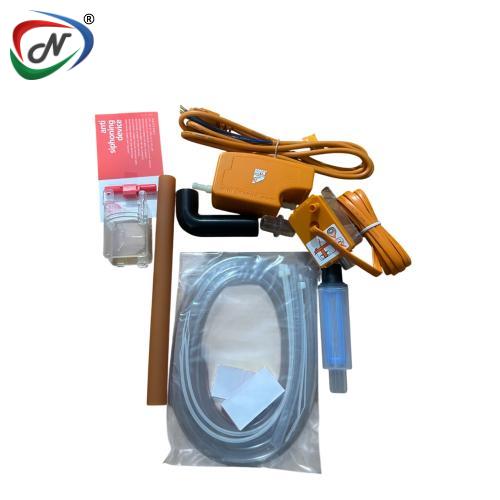

In a Box:

• Mini Orange pump
• 1.5m Plug & play power cable
•  16mm Inline Filter
• Reservoir
• Reservoir lid with 1.5m sensor cable
• Submersible reservoir
• Anti siphon device
• Float & filter
• 1.5m Suction tube 6mm ID
• 220mm Orange inlet hose 14mm ID
• 150mm Vinyl breather tube 6mm ID
• Drain connector kit
• Fixing kit
• Install manual
