FP1080/2 Aspen Mini Blanc Condensate Removal Pump

FP1080/2 Aspen Mini Blanc Condensate Removal Pump

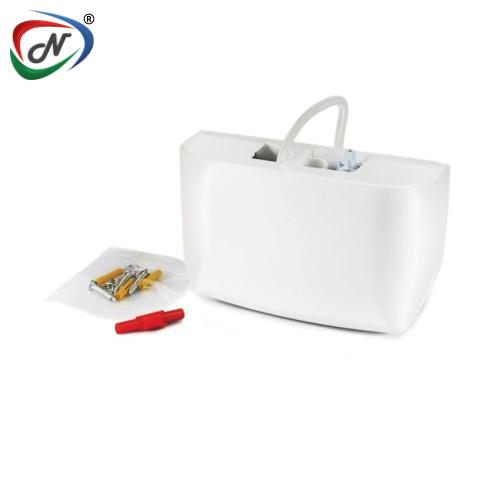

The Aspen Mini Blanc (FP1080/2) is a compact, “extra-quick fit” condensate removal pump ideal for wall-mounted indoor AC units. It silently removes condensate up to 12 L/hour while remaining discreet and space efficient. With a clear removable reservoir, it simplifies maintenance and avoids overflow issues when gravity drain isn’t possible. Designed for domestic high-wall mini-split systems (up to ~16 kW), it offers a reliable, self-priming solution in a neat, low-profile package.

Main Features:

• Max flow 12 L/h at zero lift — efficient condensate removal will keep up with typical residential AC usage.
• Compact, discreet & quick to install — fits neatly beneath indoor units with minimal space requirement and fast installation.
• Very quiet operation (21 dB(A)) — works almost silently, suitable for bedrooms or quiet spaces.
• Clear removable reservoir (0.24 L) — makes cleaning and maintenance easy, with good access for servicing.
• Adequate pumping head (up to 10 m) — can lift condensate vertically where needed (though flow rate reduces at higher lift).

Main Specifications:

• Data Based: @ 230 VAC 50Hz
• Max. flow: 12L/h
• Max. rec. head: 10m
• Tank Capacity: 0.24L
• dB (a): 21
• Power supply: 230 VAC, 0.1A, 16W, 50/60Hz
• Rated: Non continuous
• Class: II appliance
• Max. unit output: 16kW / 54,000Btu/h
• Max. water temp: 40°C / 104°F
• Discharge tube: 6mm ID
• IP Protection: IP21
• Safety switch: 3.0A Normally closed
• Thermal protection: ✓
• Fully potted: Partially
• Self-priming: ✓

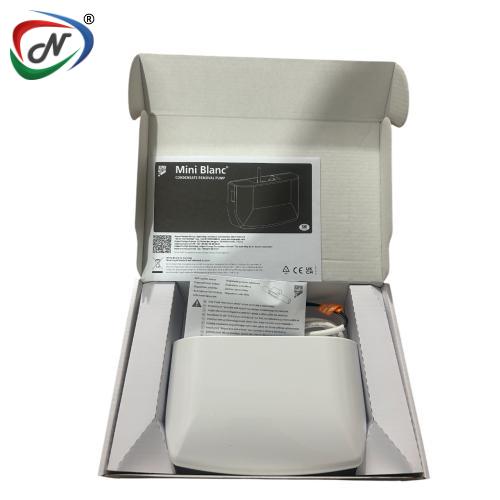

In the Box:

• Mini Blanc pump (including hard wired 1m power cable)
•  Anti siphon device
•  Drain connector kit
•  Fixing kit
•  Install manual
