ASPEN - Mini Orange Silent GEN 5 W - FP3430/FIL/IND

ASPEN - Mini Orange Silent GEN 5 W - FP3430/FIL/IND

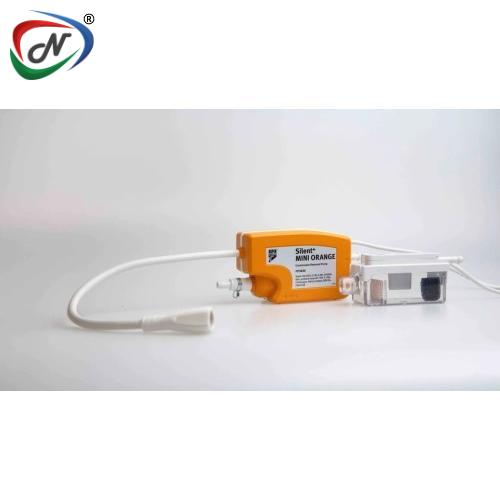

Aspen Silent+ Mini Orange Condensate Pump for Air Conditioning Systems

The Aspen Silent+ Mini Orange Condensate Pump is a premium condensate removal solution designed for reliable performance in modern air conditioning installations. Featuring advanced 5th Generation pump technology, it delivers exceptionally quiet operation, making it an ideal choice for residential, commercial, and light industrial HVAC applications.

Its compact design allows easy installation inside ceiling voids, ducted systems, wall-mounted split air conditioners, floor-standing units, and chassis-mounted air conditioning equipment. With a simple plug-and-play connection, installation is quick, while the low-maintenance design ensures dependable long-term performance.

Key Features

• Ultra-Quiet Performance – Operates at sound levels as low as 16 dB(A), making it one of the quietest condensate pumps available.
• Advanced 5th Generation Technology – Engineered for consistent, efficient condensate removal with proven reliability.

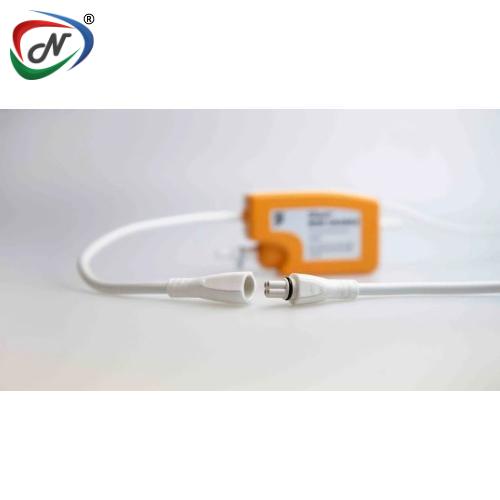

• Easy Plug-and-Play Installation – Simplifies setup and reduces installation time.
• Compact Design – Fits neatly inside ceiling spaces and other concealed installation areas.
• Minimal Maintenance – Designed for long service life with reduced maintenance requirements.

Ideal Applications

The Aspen Silent+ Mini Orange Condensate Pump is suitable for:

• Ducted air conditioning systems
• Wall-mounted split air conditioners
• Floor-standing AC units
• Chassis-mounted air conditioning systems
• Commercial HVAC installations
• Residential air conditioning applications

Package Contents

Each package includes:

• Aspen Silent+ Mini Orange 5th Generation Condensate Pump
• Reservoir with integrated filter and cover
• 1.5 m Plug-and-Play connection cable
• 1.5 m clear PVC tubing
• 150 mm clear vent hose
• 220 mm orange inlet hose
• Drain connector kit including straight connector and rubber elbow
• Quick installation guide

Main Specifications:

• Dimensions (mm)                        D144.9 X L37.9 X H65.7
• Country of Origin                          UK
• GLN

• Max. flow                                      35/h @ 0 head

• Max. rec. head                              10m (Vertical)

• Max. suction lift                            1.5m

• dB(A) @ 1m                                 16dB(A)*

• Power supply                                250VAC, 0.18A, 2.4W, 50/60 Hz Rated

• Rated                                             Continuous

• Max. water temp                          40°C / 104°F

• Discharge tube                             6mm ID

• IP Protection                                 IP24

• Safety switch                                5.0A Normally closed

• Thermal protection                      Yes

*Assuming solid wall construction with a 2kW unit

Important Compatibility Notice:
The latest Silent+ Mini Orange 5th Generation pump uses an updated design and is not compatible with earlier Aspen Mini Orange pump models. Please verify compatibility before replacing an existing unit.

Why Choose the Aspen Silent+ Mini Orange Pump?

Designed for professionals who demand quiet operation, dependable performance, and easy installation, the Aspen Silent+ Mini Orange Condensate Pump is an excellent choice for efficiently removing condensate from air conditioning systems. Its compact size, low noise output, and proven engineering make it one of the most trusted condensate pumps for HVAC professionals worldwide.
