Aspen Mini Blanc Gen 4.5 Condensate Pump – FP3578

#NSSP008851

Product Description

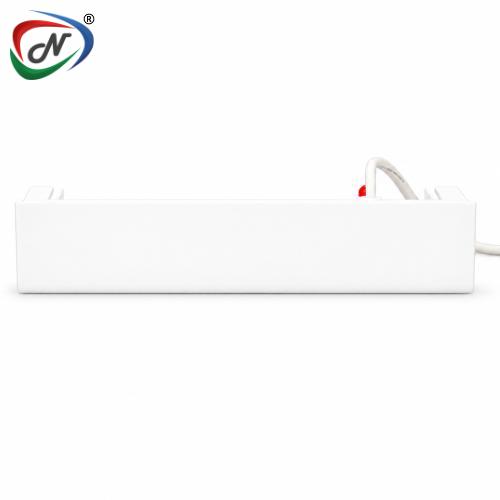

Aspen Mini Blanc Gen 4.5 Condensate Pump – FP3578

The Aspen Mini Blanc Gen 4.5 FP3578 is a compact condensate removal pump designed to mount directly beneath high-wall split air conditioners. Its slim white casing provides a neat finish, making it suitable for new installations and retrofit projects where gravity drainage is impractical.

A removable reservoir and accessible design simplify routine cleaning and maintenance. Aspen lists this model for domestic and commercial high-wall split systems up to 26 kW / 90,000 BTU/h, subject to installation conditions.

Main Features:

Under-unit mounting: Installs directly beneath the indoor AC unit.

Removable reservoir: Provides convenient maintenance access.

Quiet operation: Manufacturer-stated sound level of 19 dB(A) at 1 metre.

Self-priming operation: Supports condensate removal without manual priming.

High-level safety switch: Normally closed contact for integration with the AC control circuit.

Technical Specifications

Parameter	Details
Brand	Aspen Pumps
Product name	Mini Blanc
Generation	Gen 4.5
Part number	FP3578
Product type	Condensate removal pump
Maximum flow	20 litres/hour at 0 m head
Maximum recommended head	10 m
Flow at 10 m head	Approximately 4 litres/hour
Sound level	19 dB(A) at 1 m
Power consumption	5 W
Duty rating	Continuous
Insulation class	Class II
Maximum AC unit capacity	26 kW / 90,000 BTU/h
Maximum water temperature	40°C
Inlet / outlet	20 mm inlet / 6 mm outlet
Ingress protection	IP24
Safety switch	5 A, normally closed
Dimensions	290 × 50 × 65 mm
Pump weight	Approximately 0.48 kg

Electrical Specification Note

Aspen’s current technical sheet shows 100–250 VAC, 50/60 Hz in its performance heading, while the power-supply row states 230 VAC, 50/60 Hz. Confirm the supplied pump’s nameplate before publishing a definitive voltage range.

Main Applications:
