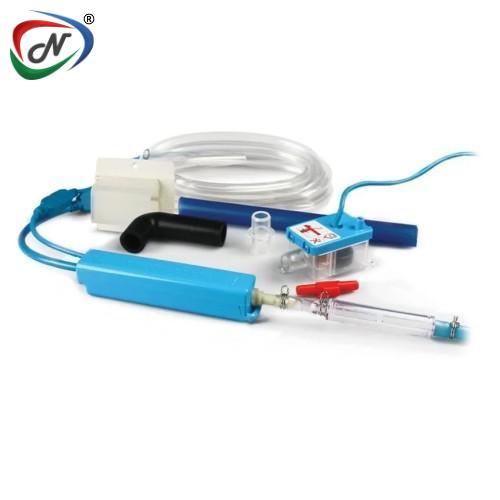

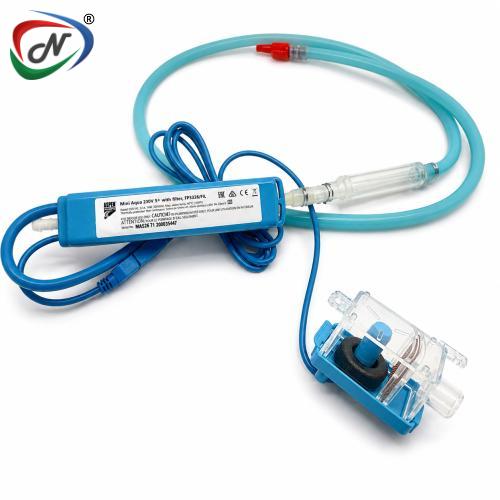

Aspen Silent+ Mini Aqua Condensate Pump for Air Conditioning Systems

The Aspen Silent+ Mini Aqua Condensate Pump is an ultra-compact condensate removal solution engineered for air conditioning systems where installation space is limited. Its exceptionally slim profile allows it to fit into narrow spaces that conventional condensate pumps cannot access, making it an ideal choice for modern residential and commercial HVAC installations.

Designed for dependable performance and easy installation, this high-efficiency pump features a convenient plug-and-play connection, an integrated anti-siphon device, and a compact reservoir system to provide reliable condensate drainage with minimal maintenance.

Key Features

• Ultra-Slim Design – Engineered to fit into tight installation spaces where standard condensate pumps are unsuitable.
• Simple Plug-and-Play Installation – Quick electrical connection helps reduce installation time.
• Integrated Anti-Siphon Protection – Prevents unwanted backflow for improved drainage efficiency.
• High-Performance Operation – Provides reliable condensate removal for a wide range of air conditioning applications.
• Compact & Lightweight Construction – Easy to install in concealed locations without occupying excess space.
• Low Maintenance Design – Built for dependable long-term operation and reduced servicing requirements.

Ideal Applications

The Aspen Silent+ Mini Aqua Condensate Pump is suitable for:

• Wall-mounted split air conditioners
• Ducted HVAC systems
• Ceiling-mounted indoor units
• Commercial air conditioning installations
• Residential HVAC systems
• Space-restricted condensate drainage applications

Package Contents

Each package includes:

• Aspen Silent+ Mini Aqua Condensate Pump
• 1.5 m Plug-and-Play power cable
• Condensate reservoir
• Reservoir cover with 1.5 m sensor cable
• Submersible reservoir
• Anti-siphon device
• Float switch and filter assembly
• 1.5 m suction tube (6 mm ID)
• 220 mm blue inlet hose (14 mm ID)
• 150 mm vinyl breather tube (6 mm ID)
• Drain connector kit
• Mounting and fixing kit
• Installation manual

Main Specifications:

• Dimensions (mm)        D183 X L28 X H28
• Country of Origin         UK
• GLN

• Max. flow                        12L/h @ 0 head

• Max. rec. head              10m (Vertical)

• Max. suction lift           1.5m

• dB(A) @ 1m                    19dB(A)

• Power supply                230 VAC, 0.11A, 16W 50/60Hz

• Rated                               Non continuous

• Max. water temp          40°C / 104°F

• Discharge tube             6mm ID

• IP Protection                 IP21

• Safety switch                3.0A Normally closed

• Thermal protection     Yes

• Fully potted                   Yes

• Self-priming                   Yes

Why Choose the Aspen Silent+ Mini Aqua Condensate Pump?

The Aspen Silent+ Mini Aqua Condensate Pump combines an exceptionally slim design with reliable pumping performance, making it an excellent solution for installations where space is at a premium. Its advanced drainage features, easy installation, and dependable operation make it a trusted choice for HVAC contractors, maintenance professionals, and air conditioning installers.
