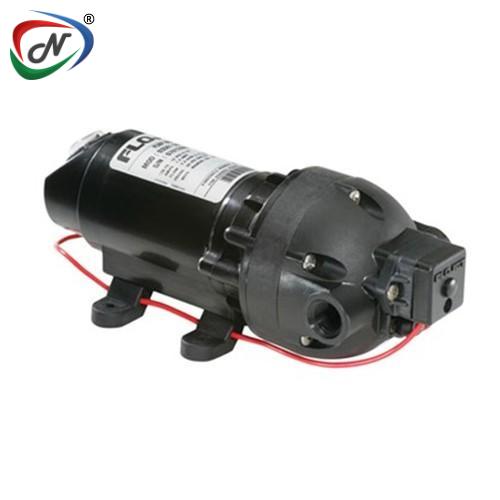

Triplex Compact Electric Diaphragm Pump

#NXSP00XXXXX

Product Description

Triplex Compact Electric Diaphragm Pump Flow rates from 7.6 litres/min (2 US gallons/min) Pressure switch control capable of pressures up to 4.1bar (60psi) Applications: Designed specifically for the Agricultural market. Xylem Flojet’s new chamber design and versatile features make it ideal for sprayers and many other transfer and dispensing applications. Small boom and spot spraying; Foam marking;Silage treatment; Estate spraying; Livestock and poultry cooling; Dispensing, & transfer of liquids Specifications : Body Materials Reinforced Polypropylene body Elastomers Santoprene Diaphragm and Viton or EPDM Valves Motor Type Permanent Magnet TENV (non-ventilated) Amp Draw Max. 8 (amp) Operating Pressure Up to 60 PSI (4.1 bar) Port Size inlet/outlet 3/8" (9.52mm) NPTF Duty Cycle Intermittent Dimensions (H x W x D) 8.92 x 3.66 x 3.96 (inches) 227 x 93 x 101 (mm)

Read More

Additional Information

NESPL Code NXSP00XXXXX
Manufacturer Code 0350, 03B0 R350, R3B0 Series
HSN Code ----
Manufacturer FLOJET / XYLEM PUMPS
Voltage 12 or 24 (Vdc)
Model 03501132 & R3501132, 03501136 & R3501136, 03501142 & R3501142, 03501146 & R3501146, 03501332 & R3501332, 03501336 & R3501336, 03501342 & R3501342, 03501346 & R3501346, 03501503 & R3501503,
Weight 1.5 (kg) 3.4 (lb)
Type Pump
