G-55 FLOJET AIR DRIVEN PUMP
#NSSP000867
Product Description

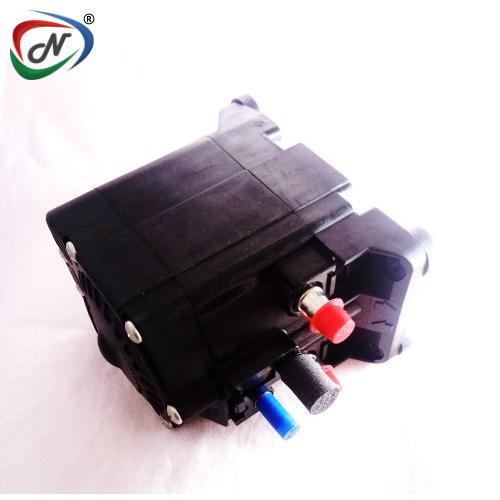

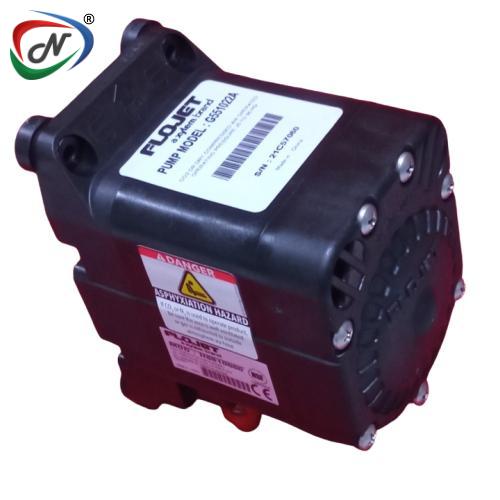

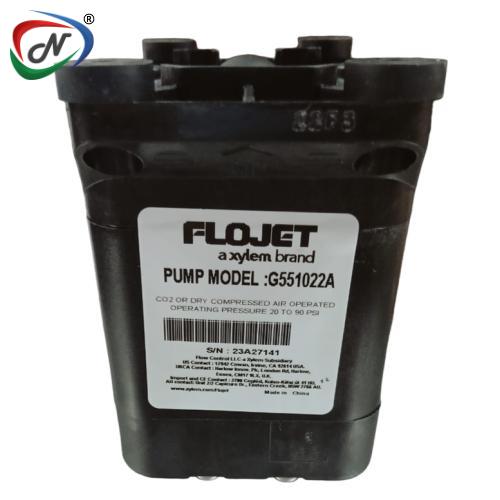

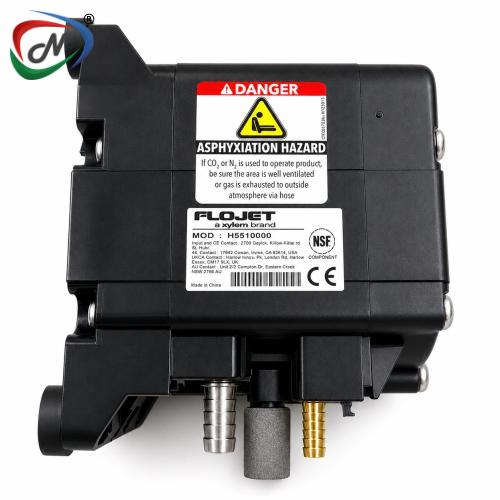

G-5510-22A FLOJET BIB PUMP AIR DRIVEN PUMP FOR COMMERCIAL
USE
Air Driven Diaphragm Bag-in-Box Pump Santoprene
diaphragm, EPDM Valve
Main Features:
- The
highest flow rate available
- High
inlet pressure for long runs - up to 90 pounds per square inch (6.2 pounds
per square meter)
- The
ultimate in performance and reliability with an extended service life
- Built-in
auto shutoff, automatically shuts off pump when bag is empty, restarts
when full
- Installation
is easy with all quick disconnect ports
- Quiet
operation
- High
altitude shutoff also available
- Recyclable
materials
- Connections:
- Product, 9.52mm (3/8") straight hose barb
- Air, 6.35mm (1/4") hose
- Dimensions: -
134mm long, 82mm wide, 116mm high
- Output: -
up to 207 ml/sec (7.0 oz/sec).
- Designed
for dispensing Bag-in-Box Syrups, juice concentrate (without particles),
teas, wines and liquor
- Corrosion
Resistant Sanitary Design
- Self-priming
up to 3M
- Built-in
auto shutoff, automatically shuts off pump when bag is empty and restarts
when a full bag is connected.
- Maximum
air pressure 6.2bar (90psi)
- Packaged
Dimensions: L:4.00 x H:7.50 xW:9.00cm
- Actual
Weight: 0.68 Kg (Approx. 0.93 Kg packed)
Main Specifications:
|
SPECIFICATIONS |
G55 SERIES |
|
Pump Design |
Positive Displacement,
Double Diaphragm |
|
Power Source |
CO2 Gas, Nitrogen or Compressed
Dry Filtered Air |
|
Materials of Construction (wetted parts) |
Polypropylene,
Santoprene®, EPDM, AISI 303 & 304 Stainless Steel |
|
Temperature Limits |
34° - 120°F
(1.1° - 49°C) |
|
Weight |
1.24 lbs. (0.56 kg.) |
|
Dimensions |
"5.27” H x 3.21” W x 4.58” D (133.8 mm x
81.5 mm x 116.3 mm)" |
|
Displacement |
3.2 oz. per cycle |
|
Self Priming |
Up to 10 ft. (3.05 m) |
|
Operating Pressure |
20 psi (1.4 bar) min.
/ 90 psi (6.2 bar) max. |
|
Liquid Inlet Pressure |
30 psi (2.1
bar) max. |
|
Flow Rate |
7.0 oz. (207.0 ml)/sec. - Open Flow |
|
Approvals |
NSF listed |
Click to download : User Guide G-5510-22A FLOJET BIB PUMP Click to download : G-5510-22A FLOJET BIB PUMP FITTINGS Click to download : G-5510-22A FLOJET BIB PUMP TECHNICAL DRAWING Click to download : Beverage Run/Rise Charts G55 SeriesBeer Industry
Soft Drink Industry
Additional Information
| NESPL Code | NSSP000867 |
| Manufacturer Code | G-5510-22A / G55-1012 |
| HSN Code | 84138190 |
| Manufacturer | FLOJET / XYLEM PUMPS |
| Model | G55 Series |
| Weight | 0.712 Kg |
| Type | Pump |
