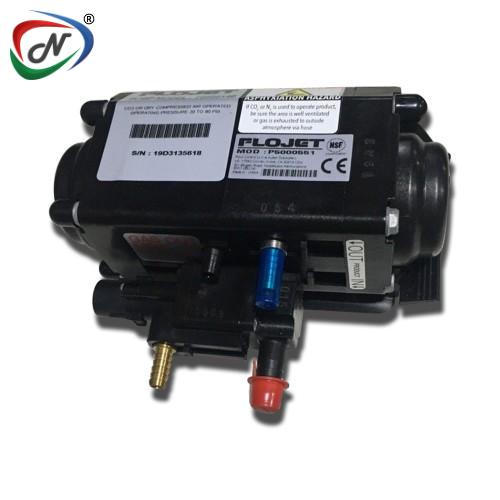

T-5000 FLOJET AIR DRIVEN BIB PUMP

#NSSP001391

Product Description

FLOJET BEVERAGE PUMP T5000-140 GAS (C02)/AIR DRIVEN PUMP

  • COMPACT DESIGN WITH QUICK DISCONNECTION FITTINGS FOR SIMPLE, QUICK INSTALLATION
  • SHUTS OFF AUTOMATICALLY WHEN BAG IS EMPTY AND RESTARTS WHEN BAG IS CONNECTED
  • HIGH ALTITUDE SHUT-OFF ALSO AVAILABLE
  • FULLY AUTOMATIC, OPERATES ONLY WHEN BEVERAGE IS BEING DISPENSED
  • 1/4? (6.35MM) BARBED, CO2 EXHAUST PORT CONNECTION FOR VENTING AWAY FROM CONFINED AREAS
  • MAINTAINS CONSTANT PRESSURE AT THE DISPENSING VALVE
  • HIGH SUCTION CAPABILITY EMPTIES SYRUP DOWN TO A MINIMUM RESIDUAL
  • RECYCLABLE MATERIALS

MAIN APPLICATIONS:

  • DESIGNED FOR DISPENSING BAG-IN-BOX SYRUPS, JUICE CONCENTRATE  (WITHOUT PULP OR PARTICULATES), TEAS, WINES AND LIQUOR
  • SUPPLIES THE FOLLOWING FROM REMOTE LOCATION: - FOUR (4) 3.0OZ (89ML) VALVES1 OR - TWO (2) 4.5OZ (133ML) VALVES2

MAIN FEATURES:

  •  AIR-OPERATED DIAPHRAGM (DOUBLE) PUMP PROVIDING CHEMICAL RESISTANCE
  •  COMPACT DESIGN
  •  POSITIVE DISPLACEMENT
  •  AUTOMATIC SHUT OFF
  •  POWER SOURCE: CO2, NITROGEN, OR COMPRESSED FILTERED AIR
  •  POLYPROPYLENE HOUSE WITH STAINLESS STEEL SPRING

MAIN SPECIFICATIONS:

  • TEMPERATURE LIMIT: 1.1 DEGREES TO 49 DEGREES CELCIUS
  •  OPERATING PRESSURE:  MINIMUM 20 PSI THAT CAN GO UP TO 80 PSI
  •  INLET FITTING: â…œ’’
  •  OUTLET FITTING: ¼”
  •  CO2 GAS FITTING: ¼”
  •  HIGH SUCTION CAPABILITY
  •  MINIMAL RESIDUE
  •  Connections: - Product, 9.5mm (3/8") barbed straight plastic inlet, 6.35mm (1/4") barbed straight stainless steel outlet - Air, 6.35mm (1/4") hose with shutoff
  • Dimensions: - 158mm long, 62mm wide, 136mm high
  •  Output: - up to 118.3ml/sec (4.0 oz/sec). Maximum pressure 5.5bar (80psi)
  • Auto demand starts pump when discharge valve is opened
  • Self-priming up to 3m
  • Pump can run-dry and handle liquids up to 49ºC (120ºF)
  • Max. Air Supply Pressure 5.6bar (80psi)
  • Packaged Dimensions: L:8.00 x H:5.00 x W:7.00cm
  • Actual Weight: 0.61 Kg  (Approx. 0.86 Kg packed)



*The details supplied here are for information only.



NESPL is An Exclusive Distributor of All the Fittings and Parts for Beverage Industry in India.

NESPL has been associated with Reputed Brands for almost a decade now. We can provide High Quality PRODUCTS FOR BEVERAGE INDUSTRY. Anywhere in India at the Best Prices as well.





Read More

Soft Drink Industry

Medical (Core) & Thermal Industry

Various Industry Products

Additional Information

NESPL Code NSSP001391
Manufacturer Code T5000140
HSN Code 84138190
Manufacturer FLOJET / XYLEM PUMPS
Model T5000 Series
Weight 0.488 Kg
Type Pump
