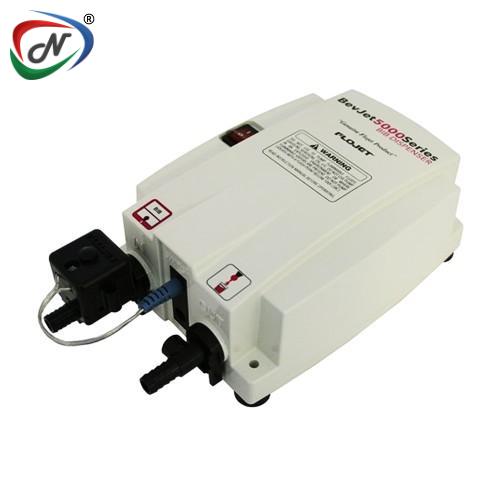

BIB5000 Series BevJet Bag-in-Box Dispense System
#NSSP000XXXXXX
Product Description
BIB5000 SERIES BEVJET BAG-IN-BOX DISPENSE SYSTEM
MAIN FEATURES AND BENEFITS:
ATTRACTIVE APPEARANCE
- CAN BE INSTALLED ANYWHERE.
VACUUM SWITCH
- AUTOMATICALLY SHUTS DOWN THE UNIT WHEN THE BAG IS EMPTY AND RESTARTS THE UNIT WHEN A NEW BAG IS ATTACHED.
CLEARLY IDENTIFIED “IN” AND “OUT” PORTS WITH QUICK DISCONNECTS
- ALLOW HOSE REPLACEMENTS IN SECONDS.
FLOJET ELECTRIC DIAPHRAGM PUMPING TECHNOLOGY
- ENSURES RUN DRY CAPABILITY, ALLOWING FOR A LONG, TROUBLE FREE SERVICE LIFE.
THERMAL PROTECTION
- AVOIDING COSTLY SERVICE FEES AND PEACE OF MIND.
LONG LIFE MOTOR
- OUTPERFORMS MANY COMPETITORS BY 400%.
NSF CERTIFICATION
- ENSURES COMPLIANCE WITH APPROVED PIPING AND FITTINGS.
SPECIFICATIONS:
|
FLOW RATE
|
0.6 GPM (2.27 LPM)
|
|
MAX PRESSURE |
40 psi (2.76 bar)
|
|
DIMENSIONS |
2.95" H X 5.12" W X 7.63" L (7.50 cm H X 13 cm W X 19.38 cm L)
|
|
VOLTAGE |
VAC 115, 230
|
|
AMP DRAW |
115V AC, 0.4 amp max 230V AC, 0.2 amp max
|
|
CYCLES |
AC 50/60 Hz
|
|
WEIGHT |
2 lb (.907 Kg)
|
|
INGRESS PROTECTION RATING |
IPX4 Inlet Port 9.5 mm (3/8") BARB
|
|
OUTLET PORT |
9.5 mm (3/8") BARB
|
Click to download : BevJet Bag-in-Box Dispense SystemAdditional Information
| NESPL Code | NSSP000XXXXXX |
| Manufacturer Code | BIB5000 Series |
| HSN Code | ---- |
| Manufacturer | FLOJET / XYLEM PUMPS |
| Voltage | 115 or 230 (VAC) |
| Model | BIB5000A, BIB5002A, BIB5003A, BIB5004A, BIB5005A |
| Weight | 0.907 (kg) 2 (lb) |
| Type | Pump |
Related Products
T-5000 FLOJET AIR DRIVEN BIB PUMP
NESPL Code - #NSSP001391

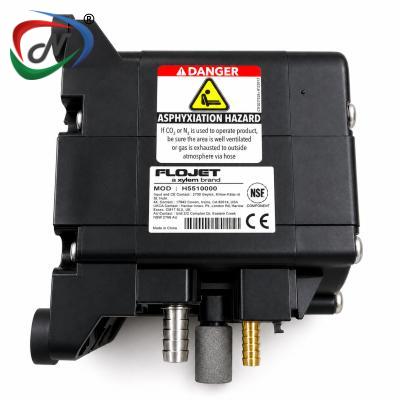

G-55 FLOJET AIR DRIVEN PUMP
