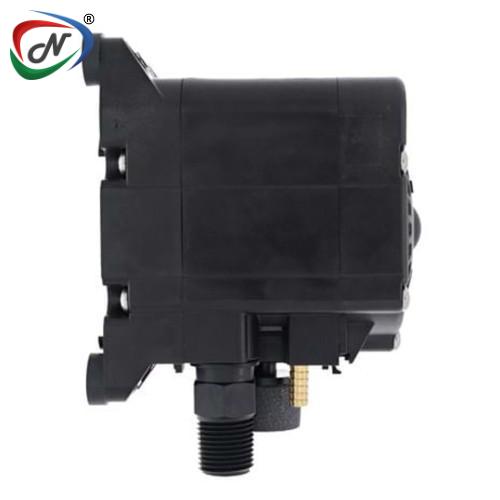

G57 5005 AIR OPERATED DOUBLE DIAPHRAGM PUMP
(In Stock)

#NS0X

Product Description

G57 5005 AIR OPERATED DOUBLE DIAPHRAGM PUMP



Innovative compact design features a patented shuttle valve that eliminates stalling and provides a long life. Features a chemically resistant polypropylene body with a choice of EP/PP blend, FKM or FFKM elastomers, as well as quick disconnect liquid and gas port fittings for easy installation.

MODEL #

OPEN FLOW

DIAPHRAGM

CHECK VALVE

LIQUID FITTINGS

AIR INLET

G57 5005

5 GPM (18.9 LPM)

EP/PP BLEN

Polypropylene

NONE

1/4 ‘’ (6MM) HB BRASS

MAIN SPECIFICATIONS:

PUMP DESIGN

Air-operated positive displacement double diaphragm pump

MAX FLOW RATE

5 GPM (18.9 LPM)

PRESSURE

20–100 psi (1.4–6.9 bar)
(same as inlet air pressure)

PORTS

Liquid — 3/8" (10mm), 1.2" (13mm) and 3/4"
(19mm) HB; 3/8" (10mm) and 1/2" (13mm) MNPT
Air inlet — 1/4" (6mm) HB

BODY

Polypropylene

DIAPHRAGM

EP/PP blend, FKM, FFKM

CHECK VALVES

EP/PP blend, FKM, FKM Extreme

CHECK VALVE SPRING

Hasteloy C

WEIGHT

1.2lb (0.5kg)

MAIN FEATURES:

  • Highest flow rate for any air pump of comparable size
  • Stall-proof design with patented shuttle valve
  • Easy installation with all quick disconnect ports
  • Robust design with durable integral mounting
  • Indicates air inlet pressures.
  • Sanitary design with inset molded diaphragm
  • Leak resistant radial seals, no critical O-ring seals
  • Quiet operation with large exhaust muffler





Read More

Soft Drink Industry

Other Commercial Equipment

Additional Information

NESPL Code NS0X
Manufacturer Code G57 5005
HSN Code N/A
Manufacturer FLOJET / XYLEM PUMPS
Voltage N/A
Model N/A
Power N/A
Weight 1.2lb (0.5kg)
Type Pump
