G575205A Air Operated Diaphragm Pump

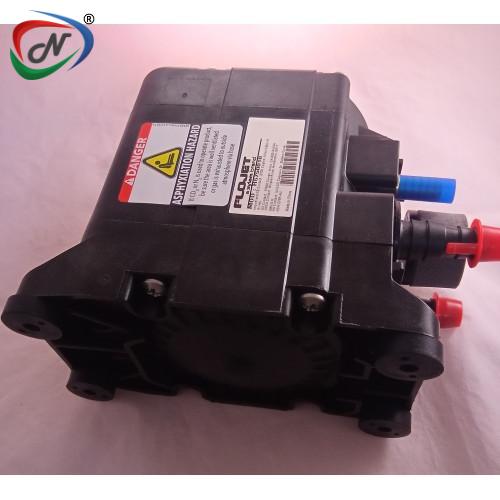

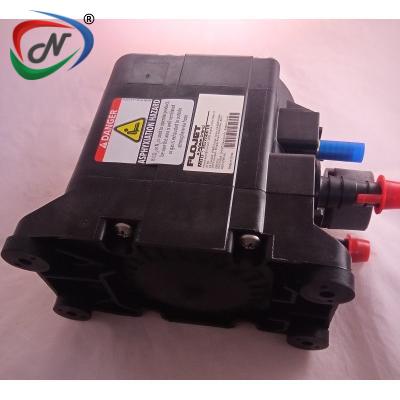

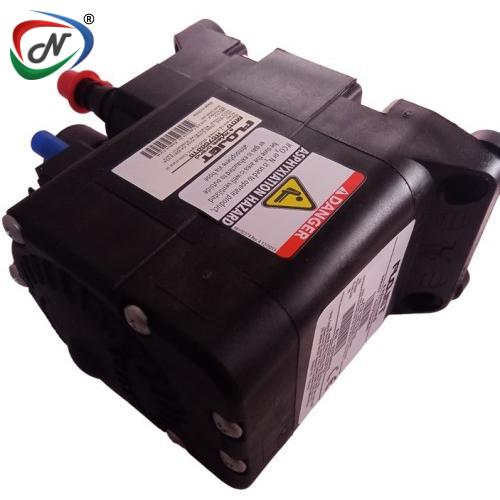

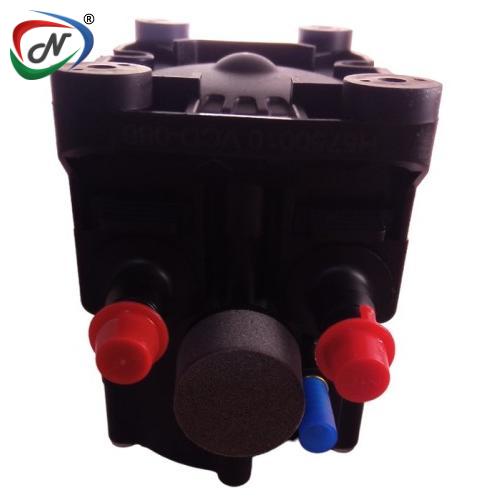

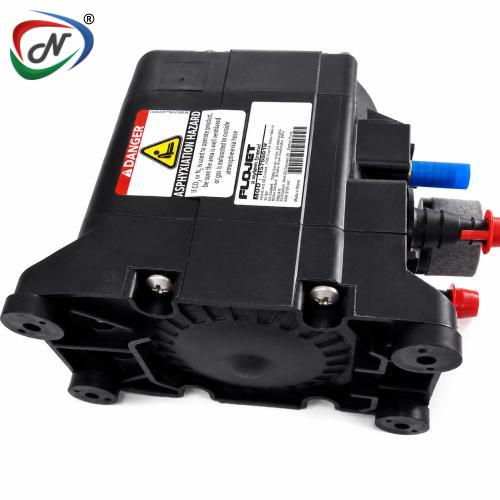

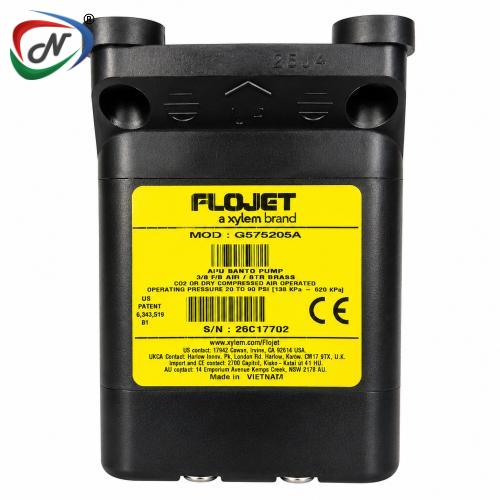

FLOJET G575205A Air Driven Diaphragm Pump

The FLOJET G575205A Air Driven Diaphragm Pump features durable Santoprene diaphragms and valves combined with EPDM O-rings for reliable performance in demanding fluid transfer applications. This material combination offers excellent resistance to wear, abrasion, water-based chemicals, and cleaning solutions while ensuring consistent sealing and leak-free operation. Designed for industrial, food service, beverage dispensing, and chemical handling systems, the pump delivers smooth, self-priming, dry-running capability with low maintenance and long-lasting operational reliability.

Main Features:

• Santoprene Diaphragm & Valves – Provides excellent durability, abrasion resistance, and long service life for demanding fluid transfer applications.
• EPDM O-Ring Seals – Ensures reliable leak-free sealing and offers excellent compatibility with water, mild chemicals, and cleaning solutions.
• Air-Operated, Self-Priming Design – Starts quickly, runs dry without damage, and delivers dependable performance without requiring electric power.
• Low Maintenance Operation – Simple diaphragm pump construction minimizes downtime and makes servicing fast and cost-effective.
• Versatile Industrial Performance – Suitable for beverage dispensing, food processing, water treatment, chemical transfer, and other industrial fluid handling applications.

Main Applications:

• Beverage Dispensing: Ideal for transferring syrups, juices, and soft drink concentrates in beverage dispensing systems.
• Food Processing: Suitable for pumping food-grade liquids in commercial food processing applications.
• Water Treatment: Used for fluid transfer in water filtration and purification systems.
• Chemical Handling: Designed for transferring compatible mild chemicals, detergents, and cleaning solutions.
• Industrial Fluid Transfer: Perfect for reliable liquid transfer in manufacturing and process industries.

Main Specifications:

•  Connections: - Fluid, 9.5mm (3/8") hose - Air, 6mm (1/4") hose
•   Dimensions: - 116mm long, 82mm wide, 115mm high
•   Output: - up to 26.5 litres/minute (5.9 gallons/minute). Maximum pressure 6.9bar (100psi)
• Capable of passing solids up to 3.2mm diameter
•  Corrosion Resistant Sanitary Design
• Pump can run-dry and handle liquids up to 49ºC (120ºF)
• Max. Air Supply Pressure 6.9bar (100psi)
• Packaged Dimensions: L:15.00 x H:15.00 x W:12.00cm
•  Actual Weight: 0.68 Kg (Approx. 0.93 Kg packed)
• Air Supply Pressure: 20 – 100 (Psi) 1.4 – 6.9 (Bar)
• Temperature Range: 120 (°F) 48.9 (°C)
• Self-Priming: Up To 15ft (4.5m)
• Port(S) Gas Inlet & Outlet: 1.4" (6.3mm)
• Weight: 0.54 (Kg)
• Port Type: 3/8" Hose Barb
• Air Fitting: 1/4" Brass Hose Barb
• Diaphragm: Santoprene
