Flojet G575215A - AOD Pump-Santoprene Diaphragm

FLOJET G575215A - AOD (AIR OPERATED DIAPHRAGM)

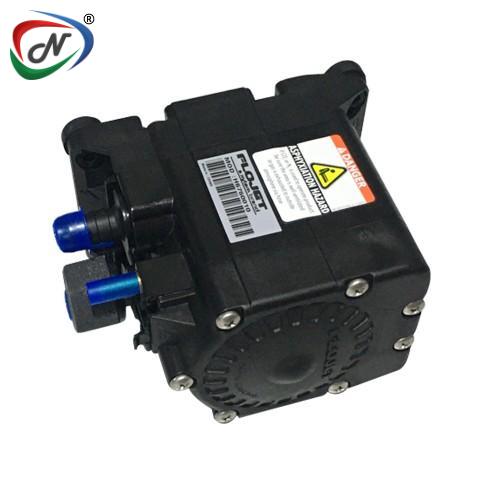

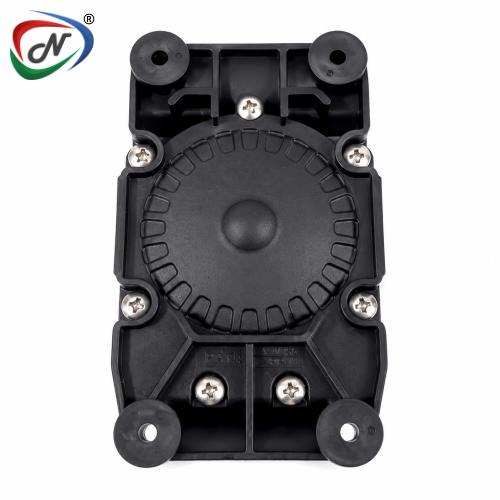

FLOJET G575215A Air Operated Double Diaphragm Pump – G57 Series, Santoprene Diaphragm

The FLOJET G575215A is a compact Air Operated Double Diaphragm (AODD) pump from the FLOJET G57 Series, designed for reliable pneumatic fluid transfer. It operates using compressed air or CO₂ rather than electricity and features a Santoprene diaphragm, polypropylene construction and 1/2-inch fluid connections. The pump provides flow up to approximately 18.9 L/min (5 GPM) and is suitable for a wide range of industrial fluid-transfer and cooling applications.

The FLOJET G575215A Air Operated Diaphragm Pump is designed for applications where dependable fluid transfer is required without an electric motor. As part of the FLOJET G57 Series, the pump uses compressed air or CO₂ to drive its diaphragm mechanism, making it suitable for industrial and commercial fluid-handling systems.

The G575215A incorporates a Santoprene diaphragm and a glass-filled polypropylene construction for durability and chemical resistance. Its compact design incorporates a pneumatic shuttle-valve system intended to provide reliable, stall-resistant operation. The pump can also handle suspended solids up to approximately 3.2 mm diameter.

The 1/2-inch fluid ports and 1/4-inch air connection make the G575215A convenient for integration into existing pneumatic pumping systems. It is particularly useful for applications such as water and coolant circulation, industrial fluid transfer, chemical handling, equipment cooling and other pneumatic pumping applications.

Key Features:

• Genuine FLOJET G57 Series air-operated diaphragm pump
• Model: G575215A
• Pump Type: Air Operated Double Diaphragm / Pneumatic Diaphragm
• Operates using compressed air or CO₂
• Santoprene diaphragm for durability
• Glass-filled polypropylene pump construction
• Maximum flow rate up to 18.9 L/min / 5 GPM
• 1/2-inch fluid hose-barb connections
• 1/4-inch air inlet
• Self-priming design
• Stall-resistant pneumatic operation
• Capable of handling solids up to approximately 3.2 mm
• Compact and lightweight design
• Suitable for continuous fluid-transfer applications
• No electrical motor required

Technical Specifications

Specifications are compiled from available G575215A technical listings.

Main Applications:

The FLOJET G575215A can be used in a variety of fluid-handling applications, including:

• Industrial fluid transfer
• Water circulation
• Coolant circulation
• Spot-welding equipment cooling circuits
• Chemical fluid transfer
• Equipment cooling systems
• Parts washing
• Fluid dispensing
• Agricultural fluid handling
• Automotive fluid applications
• Pneumatic pumping systems
• Industrial process equipment

One published application for the G575215A specifically identifies its use in water-cooling circuits for spot welders.

Why Choose FLOJET G575215A?

The FLOJET G575215A combines compact construction, pneumatic operation and reliable diaphragm pumping technology. Because the pump is air-operated, it does not require an electrical motor, making it useful where pneumatic operation is preferred.

Its Santoprene diaphragm, polypropylene construction, 1/2-inch fluid connections and 18.9 L/min maximum flow capability make it a practical choice for many fluid-transfer and circulation systems.
