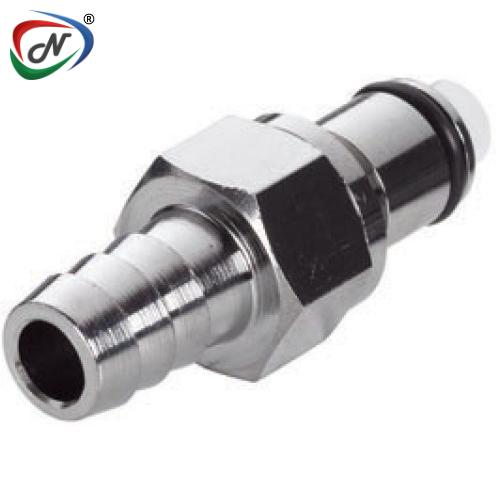

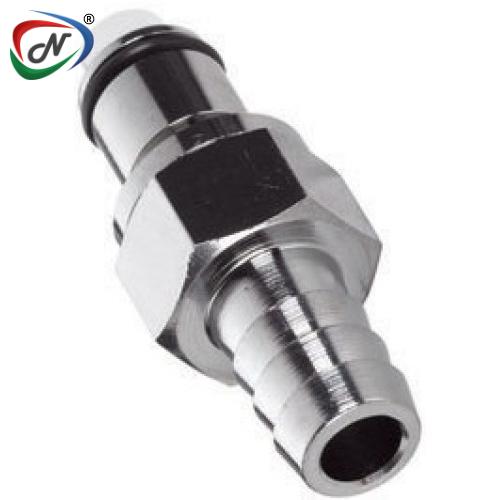

LCD22006 1/4 Hose Barb Valved Panel Mount Chrome-plated Brass Coupling Body
#NSSP003209
Product Description
LCD22006 1/4 Hose Barb Valved Panel Mount Chrome-plated Brass Coupling Body
Main Specifications:
- Material: Brass
- Material Finish: Chrome
- Pressure Range: Vacuum to 250 psi, 17.3 bar
- Color: Metallic
- Mounting Option: Free Floating
- Temperature Range: -40°F - 180°F (-40°C - 82°C)
- Seal Options: BUNA-N
- Valve Spring: 316 Stainless Steel
- Valve Option: Valved
- Body Type: Insert
- Bag Qty: 10
Main Features:
- Brass material
- Chrome plating
- High temperature capability
- Compatible
Main Benefits:
- Durable and able to withstand higher pressure and
temperature
- Attractive appearance
- Versions rated to 400°F (204°C )
- Mates with PLC and PLC12 Series couplings
COUPLING INSERTS - Chrome-plated brass
TERMINATION | IN-LINE HOSE BARB |
TUBING/THREAD SIZE | 3/8" ID |
METRIC EQ | 9.5mm ID |
STRAIGHT THRU | LC22006 |
SHUTOFF | LCD22006 |
A (Height/Diameter) | 0.63 (16.0) |
B (Total Length) | 1.35/1.83 (34.3/35.1) |
*All measurements are in inches (millimetres) unless otherwise noted.
WARNING: It is the customer's responsibility to test the suitability of CPC products in their own application conditions.
Note: Image is just for ref.
Click to download : CPC-LC-Spec-SheetMedical (Core) & Thermal Industry
Additional Information
| NESPL Code | NSSP003209 |
| Manufacturer Code | LCD22006 |
| HSN Code | 84818090 |
| Manufacturer | CPC Quick Connect & Disconnect Solutions |
| Type | Quick Fittings |
