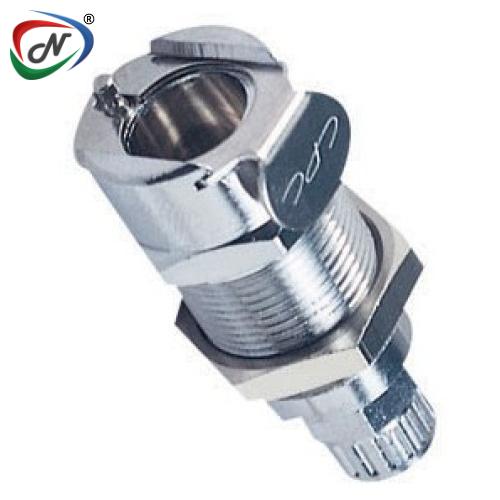

LC12004 1/4 PTF Non-Valved Panel Mount Coupling Body

#NCPC5

Product Description

LC12004

1/4 PTF Non-Valved Panel Mount Coupling Body

Main Features:

  • Brass Material
  • Chrome Plating High Temperature
  • Capability
  • Compatible

Main Benefits:

  • Durable & able to withstand higher pressure & temperature
  • Attractive Appearance
  • Versions rated to 400* F (240* C)
  • Mates with PLC and PLC12 Series Coupling

Main Specifications:

  • Material: Brass
  • Material Finish: Chrome
  • Pressure Range: Vacuum to 250 psi, 17.3 bar
  • Color: Chrome
  • Mounting Option: Panel Mount
  • Temperature Range: -40°F - 180°F (-40°C - 82°C)
  • Valve Option: Non-Valved
  • Body Type: Body
  • Weight: .1115 Ounce
  • Bag Qty: 10



TERMINATION

PANEL MOUNT

FERRULELESS

POLYTUBE FITTING,

PTF†

TUBING/THREAD SIZE

1/4" OD, 0.17" ID

METRIC EQ

6.4mm OD, 4.3mm ID

STRAIGHT THRU

LC12004

SHUTOFF

LCD12004

(Height/ Diameter)

0.88(22.9)

(Total Length)

1.87 (47.5)

All measurements are in inches (millimeters) unless otherwise noted.

Read More

Medical (Core) & Thermal Industry

Additional Information

NESPL Code NCPC5
Manufacturer Code LC12004
Manufacturer CPC Quick Connect & Disconnect Solutions
Type Quick Fittings

Related Products

 LC10004 1/4 NPT Non-Valved Coupling Body
LC10004 1/4 NPT Non-Valved Coupling Body NESPL Code - #NSSP003575
 LC10004BSPT 1/4 BSPT Non-Valved Coupling Body
LC10004BSPT 1/4 BSPT Non-Valved Coupling Body NESPL Code - #NCPC2
 LC10006 3/8 NPT Non-Valved Coupling Body
LC10006 3/8 NPT Non-Valved Coupling Body NESPL Code - #NCPC3
 LC10006BSPT 3/8 BSPT Non-Valved Coupling Body
LC10006BSPT 3/8 BSPT Non-Valved Coupling Body NESPL Code - #NCPC4
 LC12006 3/8 PTF Non-Valved Panel Mount Coupling Body
LC12006 3/8 PTF Non-Valved Panel Mount Coupling Body NESPL Code - #NCPC6
 LC13004 1/4
LC13004 1/4 NESPL Code - #NCPC7
 LC13006 3/8 PTF Non-Valved In-Line Coupling Body
LC13006 3/8 PTF Non-Valved In-Line Coupling Body NESPL Code - #NCPC8

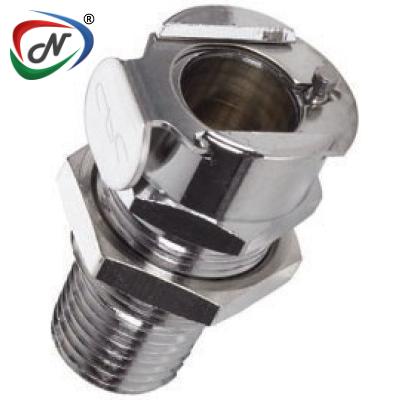

 LC15004 1/4 NPT Non-Valved Panel Mount Coupling Body
