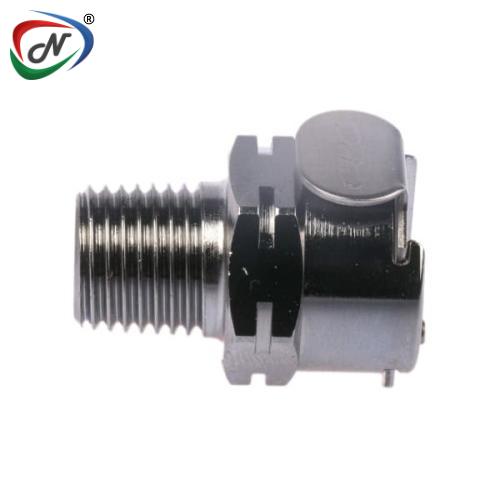

LC10004BSPT 1/4 BSPT Non-Valved Coupling Body
#NSSP005772
Product Description
LC10004BSPT
1/4 BSPT Non-Valved Coupling Body
Main Features:
- Brass Material
- Chrome Plating High Temperature
- Capability
- Compatible
Main Benefits:
- Durable & able to withstand higher pressure & temperature
- Attractive Appearance
- Versions rated to 400* F (240* C)
- Mates with PLC and PLC12 Series Coupling
Main Specifications:
- Material: Brass
- Material Finish: Chrome
- Pressure Range: Vacuum to 250 psi, 17.3 bar
- Color: Chrome
- Mounting Option: Thread
- Temperature Range: -40°F - 180°F (-40°C - 82°C)
- Valve Option: Non-Valved
- Body Type: Body
- Weight: .081 Ounce
- Bag Qty: 10
TERMINATION | IN-LINE PIPE THREAD |
TUBING/THREAD SIZE | 1/4" BSPT |
STRAIGHT THRU | LC10004BSPT |
SHUTOFF | LCD10004BSPT |
A (Height/ Diameter) | 0.88 (22.4) |
B (Total Length) | 1.15 (29.2) |
Click to download : CPC LC seriesMedical (Core) & Thermal Industry
Additional Information
| NESPL Code | NSSP005772 |
| Manufacturer Code | LC10004BSPT 1/4 BSPT |
| Manufacturer | CPC Quick Connect & Disconnect Solutions |
| Type | Quick Fittings |
