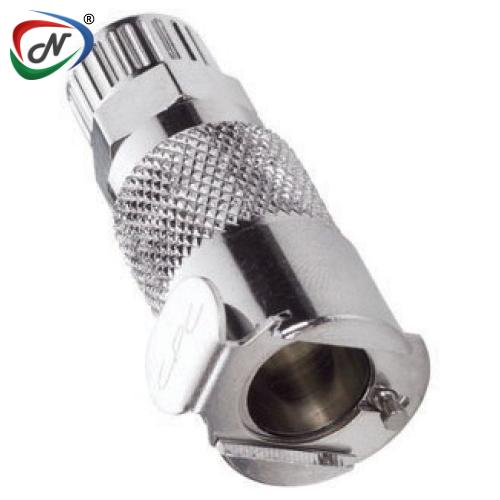

LC13006 3/8 PTF Non-Valved In-Line Chrome-plated Brass Coupling Body
#NSSP005781
Product Description
LC13006 3/8 PTF Non-Valved In-Line Chrome-plated Brass Coupling Body
Main Features:
- Brass Material
- Chrome Plating High Temperature
- Capability
- Compatible
Main Benefits:
- Durable & able to withstand higher pressure & temperature
- Attractive Appearance
- Versions rated to 400* F (240* C)
- Mates with PLC and PLC12 Series Coupling
Main Specifications:
- Material: Brass
- Material Finish: Chrome
- Pressure Range: Vacuum to 250 psi, 17.3 bar
- Color: Chrome
- Mounting Option: Free Floating
- Temperature Range: -40°F - 180°F (-40°C - 82°C)
- Valve Option: Non-Valved
- Body Type: Body
- Weight: .1275 Ounce
- Bag Qty: 10
TERMINATION | PANEL MOUNT FERRULELESS POLYTUBE FITTING, PTF† |
TUBING/THREAD SIZE | 3/8" OD, 1/4" ID |
METRIC EQ | 9.5mm OD, 6.4mm ID |
STRAIGHT THRU | LC13006 |
SHUTOFF | LCD13006 |
A (Height/ Diameter) | 0.88(22.9) |
B (Total Length) | 2 (50.8) |
All measurements are in inches (millimeters) unless otherwise noted.
Click to download : CPC LC Series Specification sheetMedical (Core) & Thermal Industry
Additional Information
| NESPL Code | NSSP005781 |
| Manufacturer Code | LC13006 |
| Manufacturer | CPC Quick Connect & Disconnect Solutions |
| Type | Quick Fittings |
Related Products
LC10004 1/4 NPT Non-Valved Coupling Body
NESPL Code - #NSSP003575
LC10004BSPT 1/4 BSPT Non-Valved Coupling Body
NESPL Code - #NSSP005772
LC10006 3/8 NPT Non-Valved Coupling Body
NESPL Code - #NSSP005773
LC10006BSPT 3/8 BSPT Non-Valved Chrome-plated Brass Coupling Body
NESPL Code - #NSSP005774
LC12004 1/4 PTF Non-Valved Panel Mount Chrome plated Brass Coupling Body
NESPL Code - #NSSP005775
LC12006 3/8 PTF Non-Valved Panel Mount Chrome-plated Brass Coupling Body
NESPL Code - #NSSP005777
LC13004 1/4 PTF Non-Valved In-Line Chrome-plated Brass Coupling Body
NESPL Code - #NSSP005779

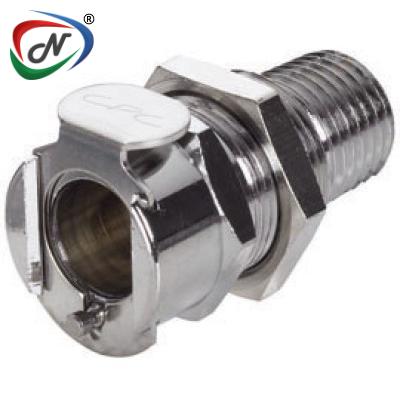

LC15004 1/4 NPT Non-Valved Panel Mount Chrome-plated Brass Coupling Body
