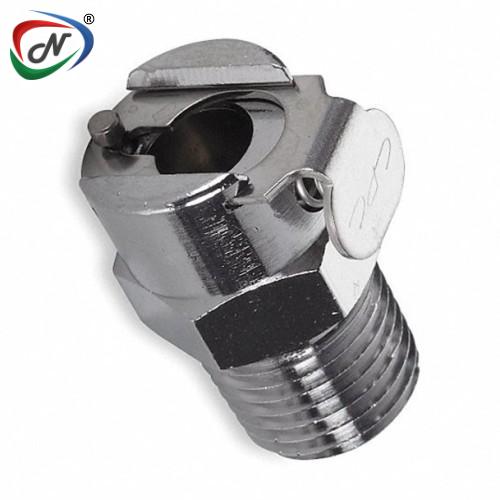

LC10004 1/4 NPT Non-Valved Coupling Body
#NSSP003575
Product Description
LC10004
1/4 NPT Non-Valved Coupling Body
Main Features:
- Brass Material
- Chrome Plating High Temperature
- Capability
- Compatible
Main Benefits:
- Durable & able to withstand higher pressure & temperature
- Attractive Appearance
- Versions rated to 400* F (240* C)
- Mates with PLC and PLC12 Series Coupling
Main Specifications:
- Material: Brass
- Material Finish: Chrome
- Pressure Range: Vacuum to 250 psi, 17.3 bar
- Temperature Range: -40°F - 180°F (-40°C - 82°C)
- Color: Chrome
- Thumb Latch: Stainless Steel
- Mounting Option: Thread
- Valve Option: Non-Valved
- Body Type: Body
- Weight: .081 Ounce
- Bag Qty: 10
|
TERMINATION |
IN-LINE PIPE THREAD |
|
TUBING/THREAD SIZE |
1/4" NPT |
|
STRAIGHT THRU |
LC10004 |
|
SHUTOFF |
LCD10004 |
|
A (Height/
Diameter) |
0.88 (22.4) |
|
B (Total Length) |
1.15 (29.2) |
*All measurements are in inches (millimeters) unless otherwise noted.
Click to download : CPC LC SeriesMedical (Core) & Thermal Industry
Additional Information
| NESPL Code | NSSP003575 |
| Manufacturer Code | LC10004 |
| HSN Code | 74198090 |
| Manufacturer | CPC Quick Connect & Disconnect Solutions |
| Model | LC10004 |
| Weight | .081 Ounce |
| Type | Quick Fittings |
Related Products
LC10004BSPT 1/4 BSPT Non-Valved Coupling Body
NESPL Code - #NSSP005772
LC10006 3/8 NPT Non-Valved Coupling Body
NESPL Code - #NSSP005773
LC10006BSPT 3/8 BSPT Non-Valved Chrome-plated Brass Coupling Body
NESPL Code - #NSSP005774
LC12004 1/4 PTF Non-Valved Panel Mount Chrome plated Brass Coupling Body
NESPL Code - #NSSP005775
LC12006 3/8 PTF Non-Valved Panel Mount Chrome-plated Brass Coupling Body
NESPL Code - #NSSP005777
LC13004 1/4 PTF Non-Valved In-Line Chrome-plated Brass Coupling Body
NESPL Code - #NSSP005779
LC13006 3/8 PTF Non-Valved In-Line Chrome-plated Brass Coupling Body
NESPL Code - #NSSP005781

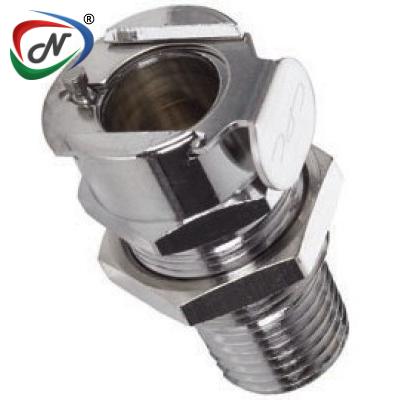

LC15004 1/4 NPT Non-Valved Panel Mount Chrome-plated Brass Coupling Body
