LCD20006 3/8 PTF Valved In-Line Coupling Insert

#NSSP003563

Product Description

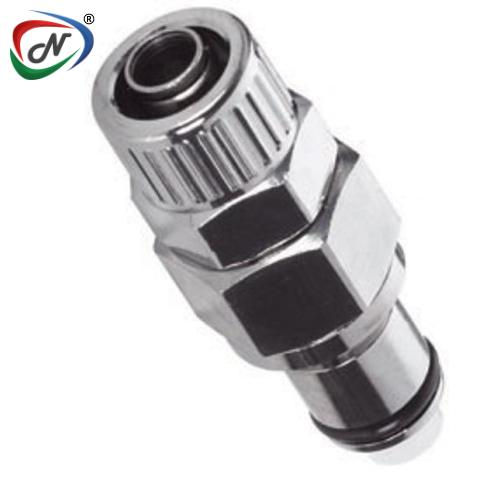

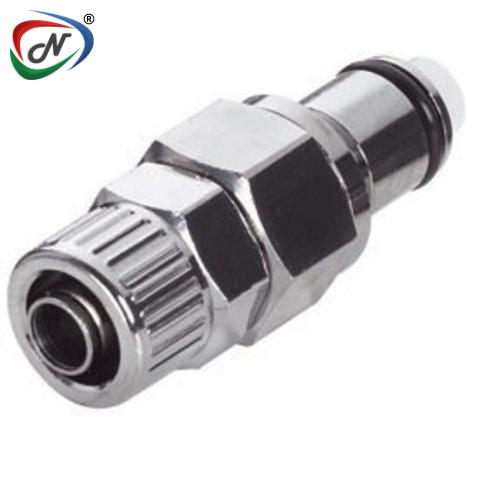

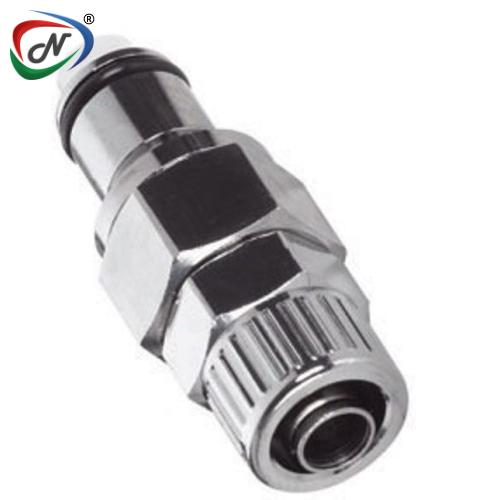

LCD20006 3/8 PTF Valved In-Line Coupling Insert

Main Features:

Brass Material
Chrome Plating High Temperature
Capability
Compatible

Main Benefits:

Durable & able to withstand higher pressure & temperature
Attractive Appearance
Versions rated to 400* F (240* C)
Mates with PLC and PLC12 Series Coupling

MAIN SPECIFICATIONS:

Material: Brass
Material Finish: Chrome
Pressure Range: Vacuum to 250 psi, 17.3 bar
Color: Metallic
Mounting Option: Free Floating
Temperature Range: -40°F - 180°F (-40°C - 82°C)
Seal Options: BUNA-N
Valve Spring: 316 Stainless Steel
Valve Option: Valved
Body Type: Insert
Bag Qty: 10

COUPLING INSERT – CHROME-PLATED BRASS

TERMINATION	IN-LINE FERRULELESS POLYTUBE FITTING, PTF†
TUBING/THREAD SIZE	3/8" OD, 1/4" ID
METRIC EQ	9.5mm OD, 6.4mm ID
STRAIGHT THRU	LC20006
SHUTOFF	LCD20006
A (Height/Diameter)	0.72 (18.3)
B (Total Length)	1.38/1.83 (1.4/35.1)

*All measurements are in inches (millimetres) unless otherwise noted. Tubing must meet stated inside and outside diameters. Couplings are pictured with valves unless otherwise noted.

†NOTE: CPC's Ferruleless Polytube Fitting terminations do not require ferrules to achieve a secure connection, which makes them easier to use and reuse. PTF fittings are designed for semi-rigid tubing, i.e., polyethylene, nylon, polyurethane, etc.

WARNING: It is the customer's responsibility to test the suitability of CPC products in their own application conditions.

Note: Image is just for ref.
