LCD10004BSPT 1/4 BSPT Valved Coupling Body
#NSSP003562
Product Description
LCD10004BSPT
1/4 BSPT Valved Coupling Body
Main Features:
- Brass Material
- Chrome Plating High Temperature
- Capability
- Compatible
Main Benefits:
- Durable & able to withstand higher pressure & temperature
- Attractive Appearance
- Versions rated to 400* F (240* C)
- Mates with PLC and PLC12 Series Coupling
Main Specifications:
- Material: Brass
- Material Finish: Chrome
- Pressure Range: Vacuum to 250 psi, 17.3 bar
- Color: Metallic
- Mounting Option: Thread
- Temperature Range: -40°F - 180°F (-40°C - 82°C)
- Seal Options: BUNA-N
- Valve Spring: 316 Stainless Steel
- Valve Option: Valved
- Body Type: Body
- Weight: .071 Ounce
- Bag Qty: 10
COUPLING BODY – Chrome-plated brass
TERMINATION | IN-LINE PIPE THREAD |
TUBING/THREAD SIZE | 1/4" BSPT |
METRIC EQ | |
STRAIGHT THRU | LC10004BSPT |
SHUTOFF | LCD10004BSPT |

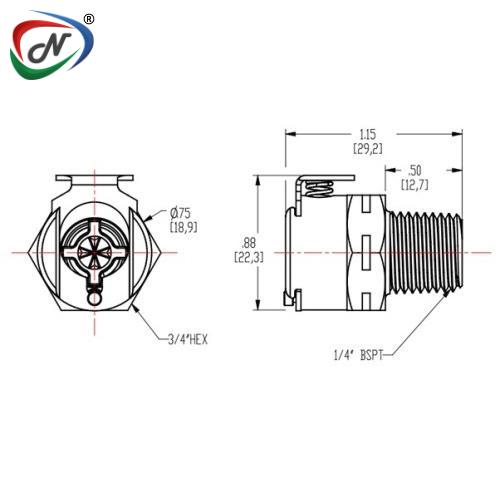

A (Height/Diameter) | 0.88 (22.4) |
B (Total Length) | 1.15 (29.2) |
*All measurements are in inches (millimetres) unless otherwise noted. Tubing must meet stated inside and outside diameters.
WARNING: It is the customer's responsibility to test the suitability of CPC products in their own application conditions.
Note: Image is just for ref.
Click to download : Dimensions/DesignMedical (Core) & Thermal Industry
Additional Information
| NESPL Code | NSSP003562 |
| Manufacturer Code | LCD10004BSPT |
| HSN Code | 84818090 |
| Manufacturer | CPC Quick Connect & Disconnect Solutions |
| Type | Quick Fittings |
