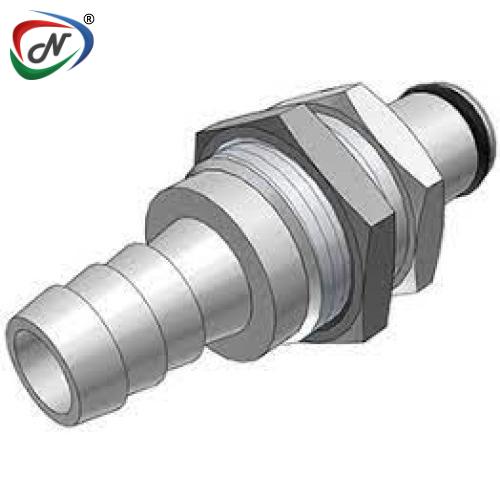

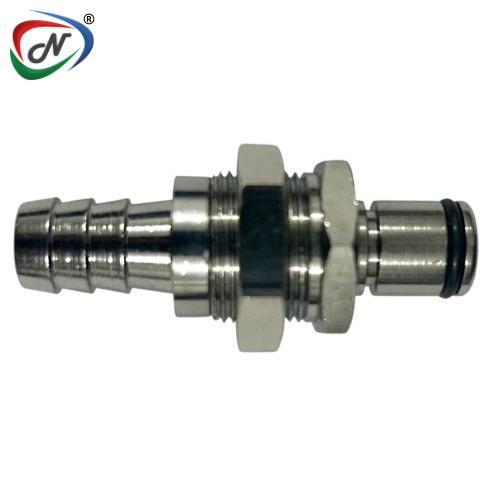

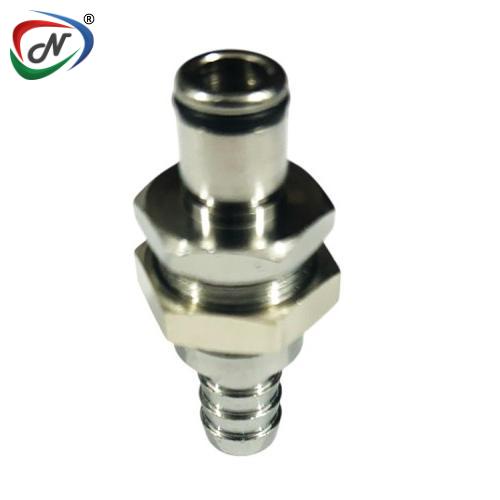

LC42006 3/8 NPT Non-Valved Chrome-plated Brass Coupling Insert

#NSSP003440

Product Description

LC42006 3/8 NPT Non-Valved Chrome-plated Brass Coupling Insert

The LC42006 3/8 NPT Non-Valved Chrome-plated Brass Coupling Insert is a durable connector designed for fluid or gas systems. It features a 3/8-inch NPT threaded connection for secure attachment. The chrome plating offers corrosion resistance, while the non-valved design ensures continuous flow without interruption or shutoff functionality.

Main Features:

  • Material: Brass
  • Material Finish: Chrome
  • Pressure Range: Vacuum to 250 psi, 17.3 bar
  • Color: Chrome
  • Mounting Option: Panel Mount
  • Temperature Range: -40°F - 180°F (-40°C - 82°C)
  • Seal Options: BUNA-N
  • Valve Options: Non-Valved
  • Body Type: Inserts
  • Bag Qty: 10

    Features

    Benefits

    Brass material

    Durable and able to withstand higher pressure and temperature

    Chrome plating

    Attractive appearance

    High temperature capability

    Versions rated to 400°F (204°C )

    Compatible

    Mates with PLC and PLC12 Series couplings

COUPLING INSERT - Chrome-plated brass

TERMINATION

PANEL MOUNT HOSE BARB

TUBING/THREAD SIZE

3/8" ID

METRIC EQ

9.5mm ID

STRAIGHT THRU

LC42006

SHUTOFF

LCD42006

A (Height/Diameter)

0.94 (23.9)

B (Total Length)

1.96/2.11 (47.8/53.6)



















*All measurements are in inches (millimetres) unless otherwise noted.Tubing must meet stated inside and outside diameters. Couplings are pictured with valves unless otherwise noted.

WARNING: It is the customer's responsibility to test the suitability of CPC products in their own application conditions.

Note: Image is just for ref.

Read More

Medical (Core) & Thermal Industry

Additional Information

NESPL Code NSSP003440
Manufacturer Code LC42006
HSN Code 74122090
Manufacturer CPC Quick Connect & Disconnect Solutions
Type Quick Fittings

Related Products

 LC10004 1/4 NPT Non-Valved Coupling Body
LC10004 1/4 NPT Non-Valved Coupling Body NESPL Code - #NSSP003575
 LC10004BSPT 1/4 BSPT Non-Valved Coupling Body
LC10004BSPT 1/4 BSPT Non-Valved Coupling Body NESPL Code - #NSSP005772
 LC10006 3/8 NPT Non-Valved Coupling Body
LC10006 3/8 NPT Non-Valved Coupling Body NESPL Code - #NSSP005773

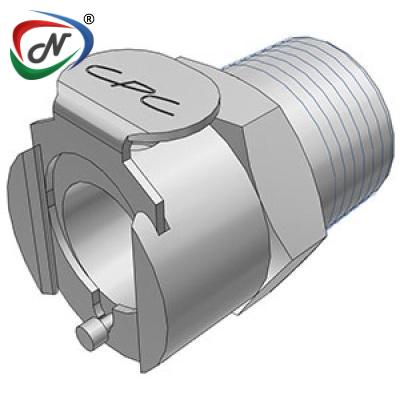

 LC10006BSPT 3/8 BSPT Non-Valved Chrome-plated Brass Coupling Body
LC10006BSPT 3/8 BSPT Non-Valved Chrome-plated Brass Coupling Body NESPL Code - #NSSP005774
 LC12004 1/4 PTF Non-Valved Panel Mount Chrome plated Brass Coupling Body
LC12004 1/4 PTF Non-Valved Panel Mount Chrome plated Brass Coupling Body NESPL Code - #NSSP005775

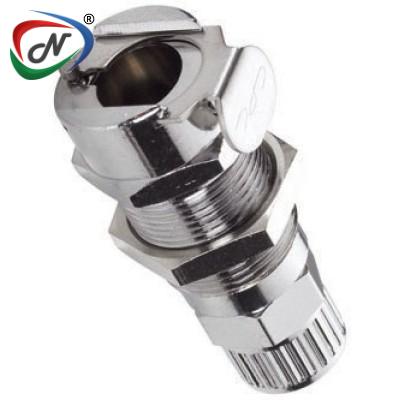

 LC12006 3/8 PTF Non-Valved Panel Mount Chrome-plated Brass Coupling Body
LC12006 3/8 PTF Non-Valved Panel Mount Chrome-plated Brass Coupling Body NESPL Code - #NSSP005777

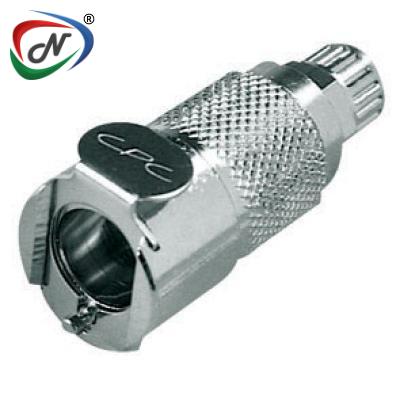

 LC13004 1/4 PTF Non-Valved In-Line Chrome-plated Brass Coupling Body
LC13004 1/4 PTF Non-Valved In-Line Chrome-plated Brass Coupling Body NESPL Code - #NSSP005779

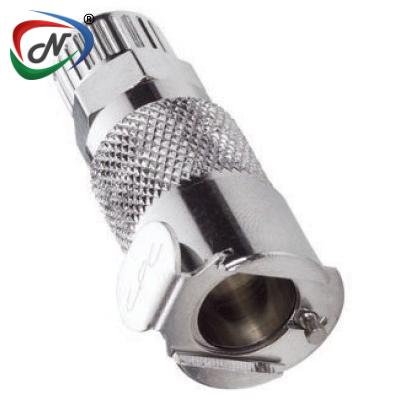

 LC13006 3/8 PTF Non-Valved In-Line Chrome-plated Brass Coupling Body
