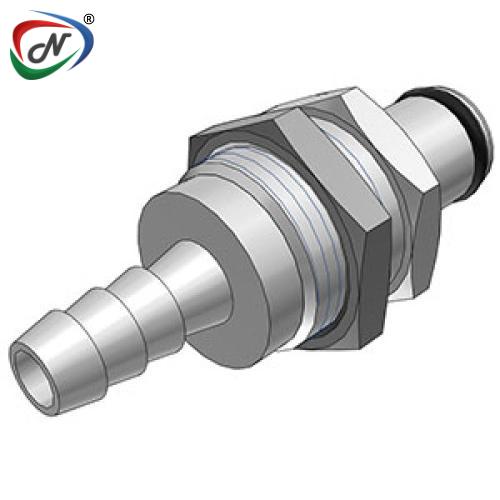

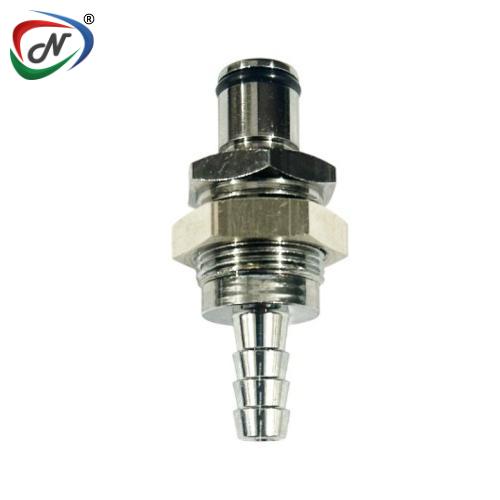

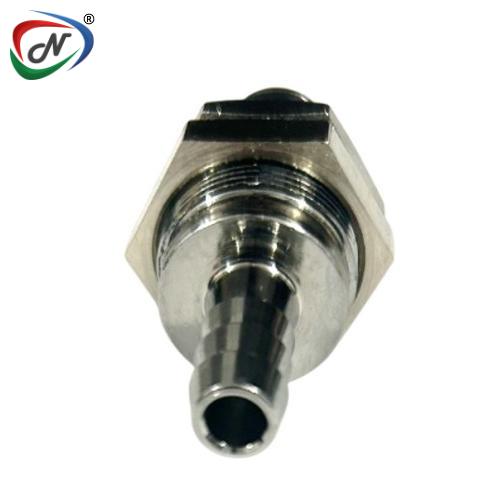

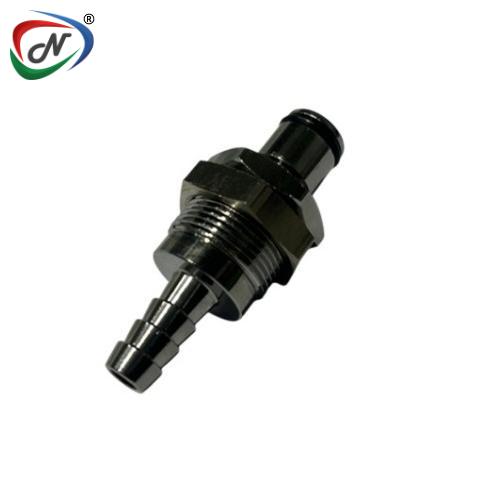

LC42004 1/4 Hose Barb Non-Valved Panel Mount Chrome plated Brass Coupling Insert
#NSSP003438
Product Description
LC42004 1/4 Hose Barb Non-Valved Panel Mount Chrome plated Brass Coupling Insert
Main Specifications:
- Material: Brass
- Material Finish: Chrome
- Pressure Range: Vacuum to 250 psi, 17.3 bar
- Color: Metallic
- Mounting Option: Panel Mount
- Temperature Range: -40°F - 180°F (-40°C - 82°C)
- Seal Options: BUNA-N
- Valve Options: Non-Valved
- Body Type: Inserts
- Bag Qty: 10
Main Features:
- Brass material
- Chrome plating
- High temperature capability
- Compatible
Main Benefits:
- Durable and able to withstand higher pressure and
temperature
- Attractive appearance
- Versions rated to 400°F (204°C )
- Mates with PLC and PLC12 Series couplings
COUPLING INSERT - Chrome-plated brass
TERMINATION | PANEL MOUNT HOSE BARB |
TUBING/THREAD SIZE | 1/4" ID |
METRIC EQ | 6.4mm ID |
STRAIGHT THRU | LC42004 |
SHUTOFF | LCD42004 |
A (Height/Diameter) | 0.94 (23.9) |
B (Total Length) | 1.96/2.11 (47.8/53.6) |
*All measurements are in inches (millimetres) unless otherwise noted.
WARNING: It is the customer's responsibility to test the suitability of CPC products in their own application conditions.
Note: Image is just for ref.
Click to download : CPC-LC-Spec-SheetMedical (Core) & Thermal Industry
Additional Information
| NESPL Code | NSSP003438 |
| Manufacturer Code | LC42004 |
| HSN Code | 74122090 |
| Manufacturer | CPC Quick Connect & Disconnect Solutions |
| Type | Quick Fittings |
