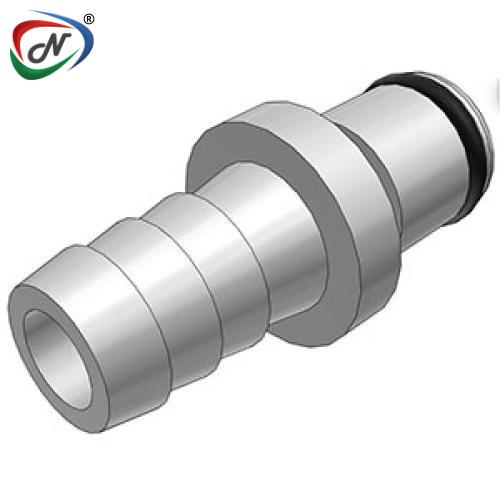

LC22006 3/8 Hose Barb Non-Valved In-Line Chrome-plated Brass Coupling Insert

#NSSP003433

Product Description

LC22006 3/8 Hose Barb Non-Valved In-Line Chrome-plated Brass Coupling Insert

 Main Specifications:

  • Material: Brass
  • Material Finish: Chrome
  • Pressure Range: Vacuum to 250 psi, 17.3 bar
  • Color: Metallic
  • Mounting Option: Free Floating
  • Temperature Range: -40°F - 180°F (-40°C - 82°C)
  • Seal Options: BUNA-N
  • Valve Options: Non-Valved
  • Body Type: Inserts
  • Bag Qty: 10

    Features

    Benefits

    Brass material

    Durable and able to withstand higher pressure and temperature

    Chrome plating

    Attractive appearance

    High temperature capability

    Versions rated to 400°F (204°C )

    Compatible

    Mates with PLC and PLC12 Series couplings

COUPLING INSERT - Chrome-plated brass

TERMINATION

IN-LINE HOSE BARB

TUBING/THREAD SIZE

3/8" ID

METRIC EQ

9.5mm ID

STRAIGHT THRU

LC22006

SHUTOFF

LCD22006

A (Height/Diameter)

0.63 (16.0)

B (Total Length)

1.35/1.83 (34.3/35.1)

















*All measurements are in inches (millimetres) unless otherwise noted.

WARNING: It is the customer's responsibility to test the suitability of CPC products in their own application conditions.

Note: Image is just for ref.

Read More

Medical (Core) & Thermal Industry

Additional Information

NESPL Code NSSP003433
Manufacturer Code LC22006
HSN Code 74122019
Manufacturer CPC Quick Connect & Disconnect Solutions
Weight 0.019kg
Type Quick Fittings
