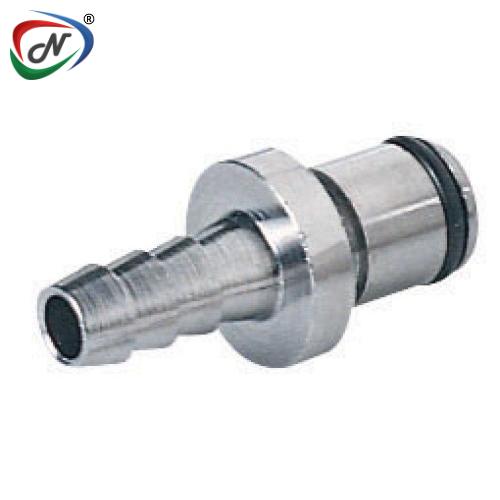

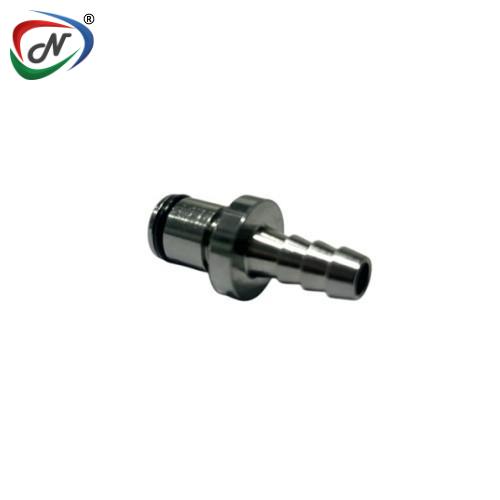

LC22004 1/4 Hose Barb Non-Valved In-Line Chrome-plated Brass Coupling Insert
#NSSP003432
Product Description
LC22004 1/4 Hose Barb Non-Valved In-Line Chrome-plated Brass Coupling Insert
Main Specifications:
- Material: Brass
- Material Finish: Chrome
- Pressure Range: Vacuum to 250 psi, 17.3 bar
- Color: Metallic
- Mounting Option: Free Floating
- Temperature Range: -40°F - 180°F (-40°C - 82°C)
- Seal Options: BUNA-N
- Valve Options: Non-Valved
- Body Type: Inserts
- Bag Qty: 10
Features
Benefits
Brass material
Durable and able to withstand higher pressure and temperature
Chrome plating
Attractive appearance
High temperature capability
Versions rated to 400°F (204°C )
Compatible
Mates with PLC and PLC12 Series couplings
COUPLING INSERT - Chrome-plated brass
TERMINATION | IN-LINE HOSE BARB |
TUBING/THREAD SIZE | 1/4" ID |
METRIC EQ | 6.4mm ID |
STRAIGHT THRU | LC22004 |
SHUTOFF | LCD22004 |
A (Height/Diameter) | 0.63 (16.0) |
B (Total Length) | 1.35/1.83 (34.3/35.1) |
WARNING: It is the customer's responsibility to test the suitability of CPC products in their own application conditions.
Note: Image is just for ref.
Click to download : CPC-LC-Spec-SheetMedical (Core) & Thermal Industry
Additional Information
| NESPL Code | NSSP003432 |
| Manufacturer Code | LC22004 |
| HSN Code | 74198090 |
| Manufacturer | CPC Quick Connect & Disconnect Solutions |
| Weight | 0.018kg |
| Type | Quick Fittings |
