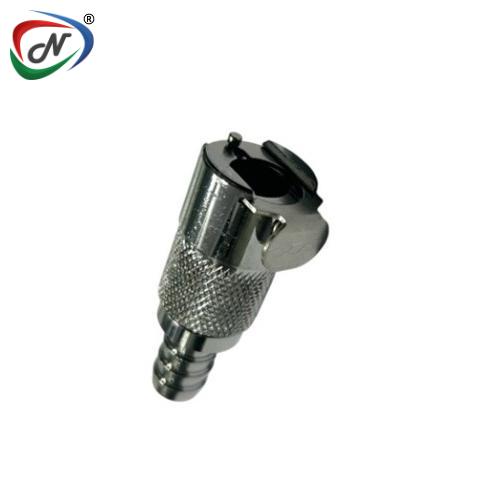

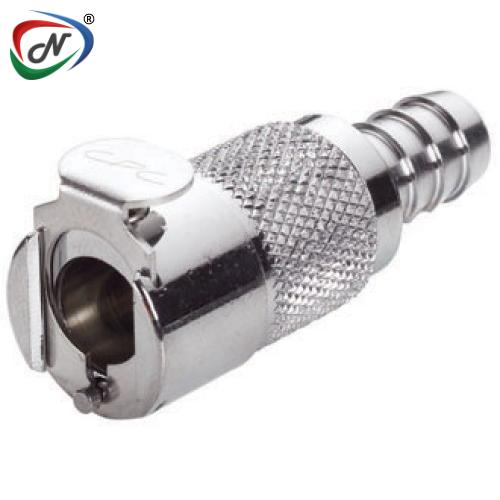

LC17006 3/8 Hose Barb Non-Valved In-Line Chrome-plated Brass Coupling Body
#NSSP003439
Product Description
LC17006 3/8 Hose Barb Non-Valved In-Line Chrome-plated Brass Coupling Body
MAIN APLLICATIONS:
- 3/8 HOSE BARB NON-VALVED IN-LINE CHROME-PLATED BRASS COUPLING BODY FOR CONNECTING TWO HOSES IN A STRAIGHT RUN
- HOSE BARBS ON ALL THE ENDS
- BRASS FOR CORROSION RESISTANCE
- LOW MAGNETIC PERMEABILITY
- BARBED FITTING FOR A TIGHT SEAL ON HOSES
- DURABLE AND HIGH STANDARD SS BARB HOSE
SPLICER
- DEEPER AND TIGHTER THREADS ALLOW BETTER BITE
- ENHANCING FIXATION
- NOT EASY TO SLIP
- TIME SAVING AND IMPROVING EFFICIENCY.
- BEST FOR USE WITH VINYL OR RUBBER TUBING
Main Specifications:
- Material: Brass
- Material Finish: Chrome
- Pressure Range: Vacuum to 250 psi, 17.3 bar
- Color: Metallic
- Mounting Option: Panel Mount
- Temperature Range: -40°F - 180°F (-40°C - 82°C)
- Valve Options: Non-Valved
- Body Type: Bodies
- Bag Qty: 10
Main Features:
- Brass material
- Chrome plating
- High temperature capability
- Compatible
Main Benefits:
- Durable and able to withstand higher pressure and
temperature
- Attractive appearance
- Versions rated to 400°F (204°C )
- Mates with PLC and PLC12 Series couplings
COUPLING BODY - Chrome-plated brass
TERMINATION | IN-LINE HOSE BARB |
?TUBING/THREAD SIZE | 3/8" ID |
METRIC EQ | 9.5mm ID |
STRAIGHT THRU | LC17006 |
SHUTOFF | LCD17006 |
A (Height/Diameter) | |
B (Total Length) | 2 (50.8) |
*All measurements are in inches (millimetres) unless otherwise noted. Tubing must meet stated inside and outside diameters.
WARNING: It is the customer's responsibility to test the suitability of CPC products in their own application conditions.
Note: Image is just for ref.
Click to download : CPC-LC-Spec-SheetMedical (Core) & Thermal Industry
Additional Information
| NESPL Code | NSSP003439 |
| Manufacturer Code | LC17006 |
| HSN Code | 74198090 |
| Manufacturer | CPC Quick Connect & Disconnect Solutions |
| Weight | 0.057kg |
| Type | Quick Fittings |
