Tygon® ND 100-65 Tubing

#SGN16

Product Description

Tygon® ND 100-65 Tubing

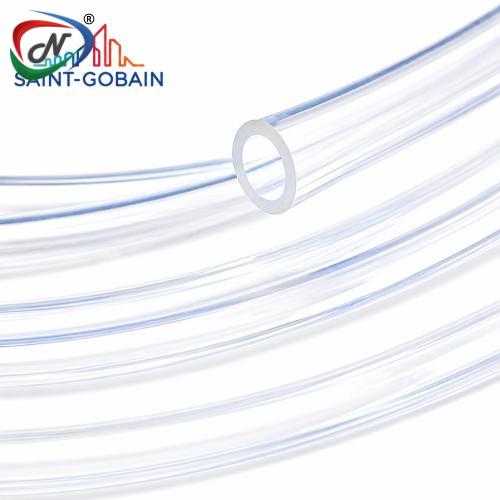

Tygon® ND 100-65 thermoplastic tubing complies with the standards of multiple ISO 10993 and USP tests, rendering it highly suitable for a range of medical applications. This tubing is transparent, allowing for straightforward observation of fluid movement, and it is simple to bond and weld. The physical characteristics of Tygon ND 100-65 position it as an excellent option for dialysis, drug delivery, respiratory therapy, diagnostic drainage, and peristaltic pumps for various types of fluids.

Main Features:

Transparent for straightforward visualization of fluid dynamics.
Routine assessments to guarantee REACH compliance.
The tubing complies with the standards of multiple ISO 10993 and USP tests (for instance, ISO 10993-3, ISO-10993-4, ISO 10993-5, ISO-10993-6, ISO 10993-11, ISO 10993-23, USP <88>; please consult the datasheet for a detailed list of tests).
The physical characteristics remain largely unaffected by the following sterilization techniques: autoclaving (steam at 135°C for 30 minutes), EtO, and gamma radiation.
Tygon ND 100-65 is engineered and produced without the deliberate inclusion of animal-derived substances or DEHP.
Successfully bonded/welded utilizing various techniques.
Elevated surface tension reduces hold-up volume within the tubing.

Main Applications:

Blood and intravenous solutions.
Chemotherapy medication administration
Dialysis apparatus
Diagnostic instruments, in vitro diagnostics (IVDs)
Dialysis apparatus
Minimally invasive instruments

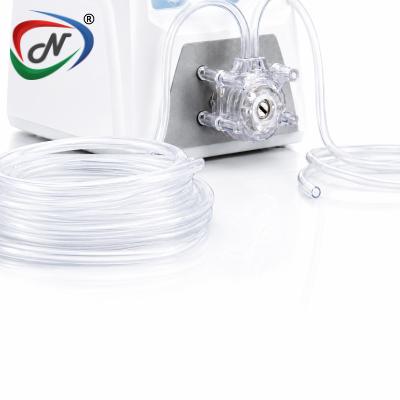

Peristaltic pump tubing for different fluids
Respiratory treatment

Main Specifications:

Property	ASTM Method	Value or Rating
Durometer Hardness (Shore A), 15 sec	D2240	65
Tensile Strength, psi (MPa)	D412	1,940 (14.3)
Ultimate Elongation, %	D412	373
Tear Resistance, lbf/inch (kN/m)	D1004	185 (32.4)
Specific Gravity	D792	1.19
Water Absorption, % 24 hrs at 73°F (23°C)	D570	0.10
Tear Strength, ppi	D1004	190
Compression Set Under Constant Deflection, % @ 158°F (70°C) for 22 hours	D395	60
Maximum Recommended Operating Temperature, °F (°C)	-	165 (74)
Brittleness by Impact Temperature, °F (°C)	D746	-44 (-42)
Tensile Modulus, @ 100% Elongation, psi (MPa)	D412	1,109 (5.6)
