Tygon® E-3603 Tubing

#SGN12

Product Description

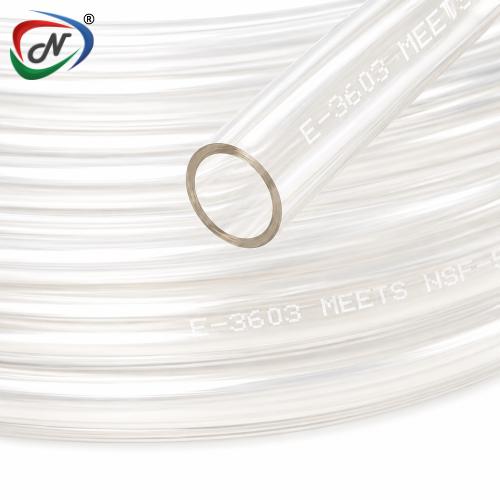

Tygon® E-3603 Tubing

Tygon® E-3603 is a flexible and transparent tubing designed for medical and diagnostic applications that necessitate chemical compatibility, visual inspection, and reliable performance. Renowned for its clarity, high dimensional accuracy, and resistance to flex-fatigue, Tygon E-3603 facilitates consistent and reproducible fluid transfer in settings that range from IVD analysers to general-purpose medical instruments. Its non-oxidizing and non-contaminating composition aids in preserving sensitive reagents while minimizing extractables. The smooth inner bore resists accumulation, making cleaning easier and decreasing the risks of carryover in fluid handling systems. With performance attributes that surpass those of rubber tubing in terms of permeability and abrasion resistance, E-3603 is perfectly suited for tubing applications where clarity, cleanliness, and dependability are essential.

Main Features:

Outstanding consistency between lots ensures reliable system performance.
Biocompatible, non-toxic, and free from contamination.
The smooth inner surface reduces buildup and carryover.
High clarity facilitates the detection of air bubbles and fluid monitoring.
Formulation is free from BPA and phthalates.
Preserves vacuum integrity at room temperature in standard sizes.
Outstanding consistency between lots ensures reliable system performance.
Fully adheres to REACH regulations and California Proposition 65.

Main Specifications:

Property	ASTM Method	Value or Rating
Durometer Hardness (Shore A), 15s	D2240	56
Tensile Strength, psi (MPa)	D412	1750 (12.1)
Ultimate Elongation, %	D412	425
Tear Resistance, lb-f/inch (kN/m)	D1004	173 ( 31)
Specific Gravity	D792	1.21
Water Absorption, % 24 hrs. @ 73°F (23°C)	D570	0.21
Compression Set Constant Deflection, % @ 158°F (70°C) for 22 hrs.	D395 Method B	64
Brittle Temperature, °F (°C)	D746	-51(-46)
Maximum Recommended Operating Temp., °F (°C)	-	165 (74)
Tensile Stress, @ 100% elongation psi (MPa)	-	582 (4.0)
Tensile Set, %	D412	95
