Tygon® ND 100-40 Tubing

#SGN18

Product Description

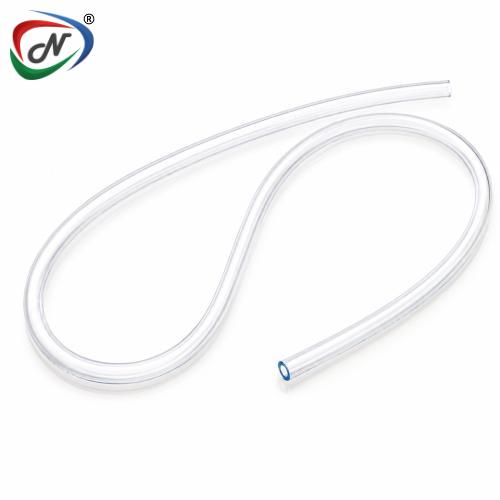

Tygon® ND 100-40 Tubing

Tygon® ND 100-40 tubing complies with the Biological Test for Plastics, Class VI, as outlined in USP <88> (2011; fluid path), making it suitable for a variety of medical applications. This tubing is transparent, allowing for easy monitoring of fluid flow, and exhibits excellent flexibility, rendering it an optimal selection for battery-operated peristaltic pump devices, drug delivery systems, IV fluid transfer, and organ preservation technologies.

Main Features:

Transparent for straightforward visualization of fluid dynamics.
Adaptable and easily bendable.
The fluid pathway has satisfied the testing criteria of the Biological Test for Plastics, Class VI, as outlined in USP <88> (2011).
The physical characteristics are not notably affected by the following sterilization techniques: autoclaving (steam at 135°C for 30 minutes), ethylene oxide, and gamma radiation.
Tygon ND 100-40 is engineered and produced without the deliberate inclusion of animal-derived substances or DEHP.
Ongoing assessments are conducted to guarantee compliance with REACH regulations.

Main Applications:

Organ preservation technology.

IV fluid transfer.

Drug delivery (e.g., chemotherapy drug delivery).

Battery powered peristaltic pump devices.

Main Specifications:

Property	ASTM Method	Value or Rating
Durometer Hardness (Shore A), 15s	D2240	40
Tensile Strength, psi (MPa)	D412	1,225 (8.4)
Ultimate Elongation, %	D412	380
Tensile Stress @ 100% Elongation, psi (MPa)	D412	348 (2.4)
Tear Resistance, lbf/inch (kN/m)	D1004	70 (12.3)
Compression Set Under Constant Deflection, % @ 158°F (70°C) for 22 hours	D395 Method B	53
Brittle Temperature, °F (°C)	D746	-56 (-49)
Specific Gravity	D792	1.13
Water Absorption, % 24 hrs at 73°F (23°C)	D570	0.17
Maximum Recommended Operating Temperature, °F (°C)	-	125 (52)
