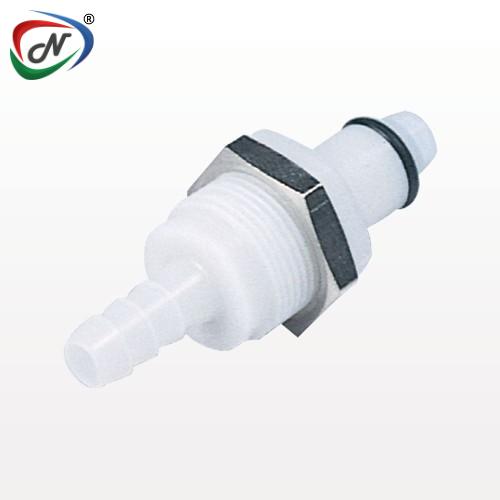

PLCD42004 1/4 Hose Barb Valved Panel Mount Coupling Insert
#NSSP003062
Product Description
PLCD42004
1/4 Hose Barb Valved Panel Mount Coupling Insert
Main Features:
- Colder thumb latch
- Integral terminations
- Clicks when connected
- Compatible
Main Benefits:
- One-hand connection and disconnection
- Fewer leak points, shorter assemblies, faster installations
- Assurance of a reliable connection
- Mates with LC and PLC12 Series couplings
Main Specifications:
- Material: Acetal
- Material Finish: Natural
- Pressure Range: Vacuum to 120 psi, 8.3 bar
- Color: White
- Mounting Option: Panel Mount
- Temperature Range: -40°F - 180°F (-40°C - 82°C)
- Seal Options: BUNA-N
- Valve Spring: 316 Stainless Steel
- Valve Option: Valved
- Body Type: Insert
- Weight: .013 Ounce
- Bag Qty: 25
TERMINATION
PANEL MOUNT
HOSE BARB
TUBING/THREAD SIZE
1/4" ID
METRIC EQ
6.4mm ID
STRAIGHT THRU
PLC42004
SHUTOFF
PLCD42004
A (Height/ Diameter)
0.94 (23.9)
B (Total Length)
1.91/2.05 (48.5/52.1)
All measurements are in inches (millimetres) unless otherwise noted.
Click to download : CPC PLC SeriesMedical (Core) & Thermal Industry
Additional Information
| NESPL Code | NSSP003062 |
| Manufacturer Code | PLCD42004 |
| HSN Code | 84818090 |
| Manufacturer | CPC Quick Connect & Disconnect Solutions |
| Type | Quick Fittings |
