PLCD2200606 3/8" Hose Barb, Valved, In-line Coupling Insert
#NCPC284
Product Description
PLCD2200606
3/8" Hose Barb, Valved, In-line Coupling Insert
Main Features:
- Single thumb latch
- Latch always in position to accept insert
- Compact, modular design
- Independent quick connections
Main Benefits:
- Minimizes inadvertent latch activation
- Ensures leak-free operation
- Fits well in the hand and is easy to wipe down
- Requires minimal manual dexterity
Main Specifications:
- Material: ABS
- Material Finish: White with blue latch
- Pressure Range: Vacuum to 20 psi, 1.38 bar
- Mounting Option: Free Floating
- Sterilization: EtO, e-beam or gamma
- Temperature Range: 32°F - 120°F (0°C - 48°C)
- Seal Options: BUNA-N
- Valve Spring: 316 Stainless Steel
- Valve Option: Valved
- Body Type: Insert
- Bag Qty: 25
COUPLING INSERTS - ABS
TERMINATION | IN-LINE HOSE BARB |
TUBING/ THREAD SIZE | 3/8" ID |
METRIC EQ. | 9.5mm ID |
SHUTTOFF | PLCD2200606 |
A (Height/Diameter) | 0.73 (18.5) |
B (Total Length) | 1.69 (42.9) |
*All measurements are in inches (millimetres) unless otherwise noted.

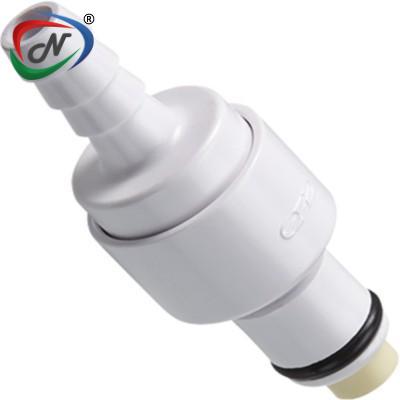

Note: Image is just for ref.
WARNING: Pressure, temperature, chemicals, and operating environment can affect the performance of couplings. It is the customer's responsibility to test the suitability of CPC products in their own application conditions.
Click to download : Dimensions/Design Medical (Core) & Thermal Industry
Additional Information
| NESPL Code | NCPC284 |
| Manufacturer Code | PLCD2200606 |
| Manufacturer | CPC Quick Connect & Disconnect Solutions |
| Type | Quick Fittings |
