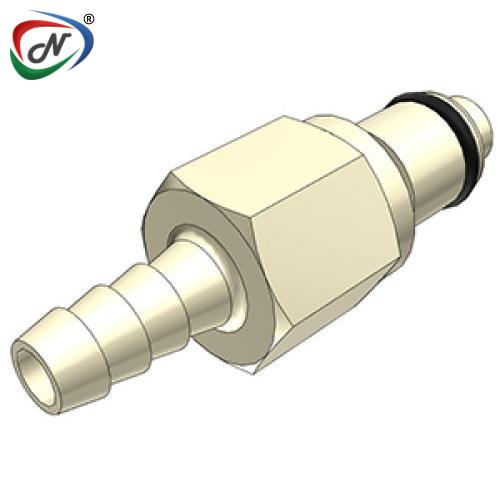

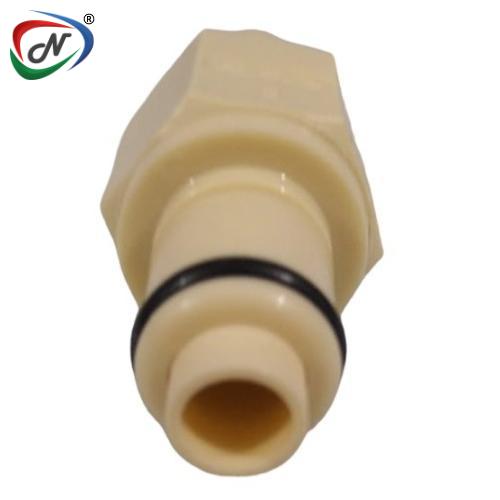

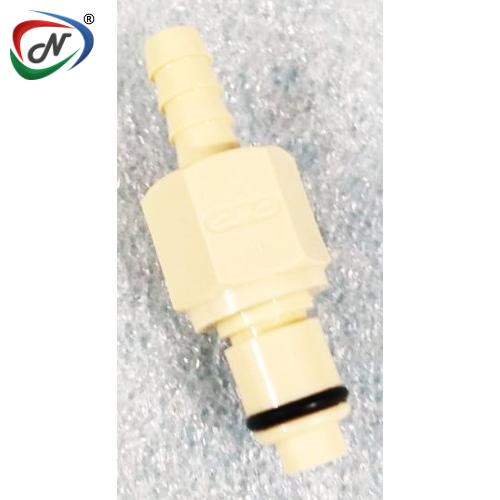

PLCD2200412 1/4 Hose Barb Valved In-Line Coupling Insert

#NSSP003221

Product Description

PLCD2200412

1/4 Hose Barb Valved In-Line Coupling Insert

Main Features:

Single thumb latch
Latch always in position to accept insert
Compact, modular design
Independent quick connections

Main Benefits:

Minimizes inadvertent latch activation
Ensures leak-free operation
Fits well in the hand and is easy to wipe down
Requires minimal manual dexterity

Main Specifications:

Material: Polypropylene

Material Finish: Almond

Pressure Range: Vacuum to 120 psi, 8.3 bar

Color: Almond

Mounting Option: Free Floating

Sterilization: Gamma: Up to 50 kGy irradiation

Temperature Range: 32°F - 160°F (0°C - 71°C)

Seal Options: EPDM

Valve Spring: 316 Stainless Steel

Valve Option: Valved

Body Type: Inserts

Bag Qty: 25

COUPLING INSERTS - Acetal

TERMINATION	IN-LINE HOSE BARB
TUBING/THREAD SIZE	1/4" ID
METRIC EQ.	6.4mm ID
STRAIGHT THRU	PLC2200412
SHUTOFF	PLCD2200412
A (Height/Diameter)	0.63 (16.0)
B (Total Length)	1.35/2.00 (34.3/50.8)

*All measurements are in inches (millimetres) unless otherwise noted. Tubing must meet stated inside and outside diameters. ?Couplings are pictured with valves unless otherwise noted.

WARNING: It is the customer's responsibility to test the suitability of CPC products in their own application conditions.

Note: Image is just for ref.
