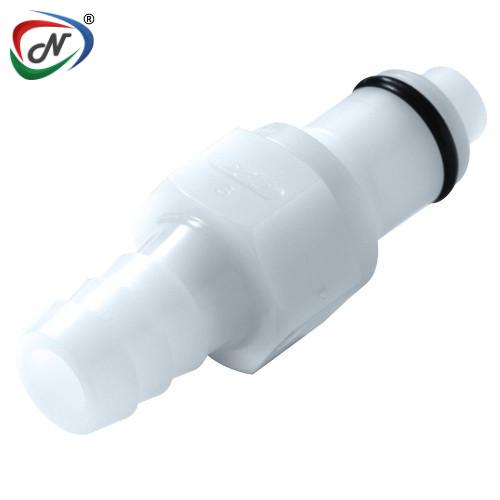

PLCD22004 1/4 Hose Barb Valved In-Line Coupling Insert
#NSSP003060
Product Description
PLCD22004
1/4 Hose Barb Valved In-Line Coupling Insert
Main Features:
- Colder thumb latch
- Integral terminations
- Clicks when connected
- Compatible
Main Benefits:
- One-hand connection and disconnection
- Fewer leak points, shorter assemblies, faster installations
- Assurance of a reliable connection
- Mates with LC and PLC12 Series couplings
Main Specifications:
- Material: Acetal
- Material Finish: Natural
- Pressure Range: Vacuum to 120 psi, 8.3 bar
- Color: White
- Mounting Option: Free Floating
- Temperature Range: -40°F - 180°F (-40°C - 82°C)
- Seal Options: BUNA-N
- Valve Spring: 316 Stainless Steel
- Valve Option: Valved
- Body Type: Insert
- Weight: .012 Ounce
- Bag Qty: 25
|
TERMINATION |
IN-LINE HOSE BARB |
|
TUBING/THREAD SIZE |
1/4" ID |
|
METRIC EQ |
6.4mm
ID |
|
STRAIGHT THRU |
PLC22004 |
|
SHUTOFF |
PLCD22004 |
|
A (Height/ Diameter) |
0.62 (15.7) |
|
B (Total Length) |
1.35/1.99
(34.3/50.6) |
All measurements are in inches (millimetres) unless otherwise noted.
WARNING: It is the customer's responsibility to test the suitability of CPC products in their own application conditions.
Note: Image is just for ref.
Click to download : CPC PLC Series Medical (Core) & Thermal Industry
Additional Information
| NESPL Code | NSSP003060 |
| Manufacturer Code | PLCD22004 |
| HSN Code | 84818090 |
| Manufacturer | CPC Quick Connect & Disconnect Solutions |
| Weight | 0.005kg |
| Type | Quick Fittings |
