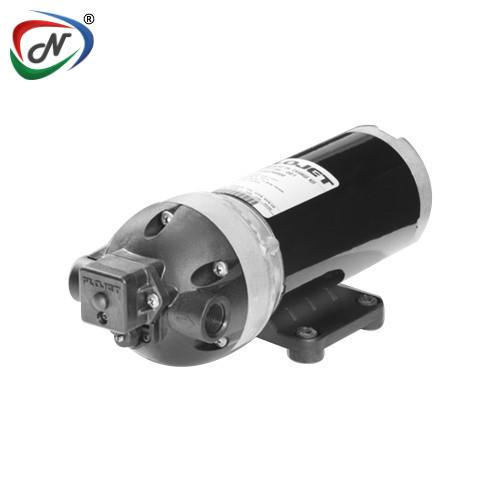

Triplex Hi-Pressure Diaphragm Pumps

#NXSP00XXXXXX

Product Description

Triplex Hi-Pressure Diaphragm Pumps Triplex Hi-Pressure motor driven diaphragm pump Flow rates from 5.3 litres/min (1.4 US gallons/min) Pressure switch control capable of pressures up to 10.5bar (150psi) Applications: Designed for a wide range of applications; Spraying, misting, filtration, cooling, dispensing and pressure boosting. Small boom and spot spraying; Silage treatment; Estate spraying; Livestock and poultry cooling; Specifications : Body Materials Glass filled Nylon Elastomers Santoprene Diaphragm and Viton or EPDM Valves Motor Type Permanent Magnet DC or Rectified (PMDC) AC 110 or 230 (VAC) Frequency 50 or 60 (Hz) Amp Draw 9 amp max for 12 VDC, 0.95 amp max for 115 VAC Operating Pressure Up to 140 PSI (9.7 bar) Port Size inlet/outlet 3/8" (9.52mm) NPTF Duty Cycle Intermittent Dimensions (H x W x D) 9.44 x 3.67 x 3.93 (inches) 240 x 93 x 100 (mm)

Click to download : Triplex Hi-Pressure Diaphragm Pumps

Additional Information

NESPL Code	NXSP00XXXXXX
Manufacturer Code	03711 & 03811 Series
HSN Code	----
Manufacturer	FLOJET / XYLEM PUMPS
Voltage	12 or 24 (Vdc) 110 or 230 (VAC)
Model	03711 & 03811 Series
Weight	3.5 (kg) 7.6 (lb)
Type	Pump
