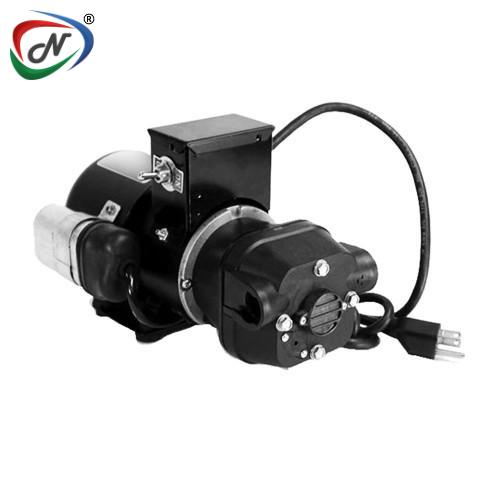

Induction Motor Driven 115 VAC Industrial Diaphragm Pump The Flojet induction motor driven diaphragm pump provides excellent service where continuous duty is required for operation. The AC 115VAC capacitor start induction motor dramatically extends motor service life up to 10,000 hours. This pump is the clear choice for continuous duty bulk transfer and recirculation applications. Available with EPDM & Viton CVA for wide range of chemical applications. Continuous Duty Run Dry Ability Self-Priming Thermal Overload Protected Motor Easy Installation Low Amp Draw Compact Size Quiet Running Snap-in Port Adapters Flow to 3 GPM/12 LPM Specs :- Open Flow 12 (litres/min.) 3.0 (Imp. gpm) Power Supply DC Materials of Construction Polypropylene housing, Santoprenediaphragm, EPDM or Viton check valves Pressure Switch Setting 40 (psi) 2.5 (bar) Temperature Range Min 45 Max 130 (°F) Min 7 Max 54 (°C) Motor Type AC Induction Type Fan Cooled, Capacitor Start Sealed Ball Bearing Thermally Protected 1.8 AMP CSA Weight 5.5 (kg) 12 (lb) Voltage 115 (Vdc) Frequency 60 (Hz) Duty Cycle Continuous
NESPL Code | NXXX00XXX |
Manufacturer Code | 4300 AC Induction Series |
HSN Code | ---- |
Manufacturer | FLOJET / XYLEM PUMPS |
Voltage | 115 (Vdc) |
Model | 4300529, 4300531 |
Weight | 5.5 (kg) 12 (lb) |
Type | Pump |
