StepLess® Ear Clamps - Next Generation - 123 & 193
#CLAMPOET2
Product Description
StepLess® Ear Clamps - Next Generation - 123 & 193
Main Features:
- 360° StepLess®: provides consistent 360° compression and
even surface pressure.
- Closed Interlock: designed to handle significant radial
loads while maintaining a smooth outer profile.
- Teardrop embossment: accommodates greater radial loads when
used with compressible materials.

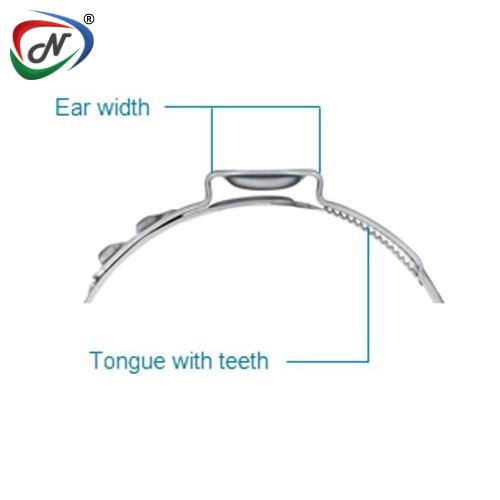

- Clamp ear: allows for adjustment to accommodate component
tolerances and regulate surface pressure.
- Dimple: enhances clamping force, with expansion capabilities
to address diameter variations caused by thermal changes.
- Specially shaped strip edges: minimize the likelihood of
damage to the components being clamped.
Material
123 High strength
steel, material no. 1.0934
- HX380LAD+ZA 255 (Galfan),
Optional
- Coating: HX380LAD+Z275 (Zinc),
Standard
193 Stainless Steel,
material no. 1.4301/UNS S30400
Standard Series
|
Size range |
width x thickness |
ear width |
|
18.0 – 120.5 mm |
7.0 x 0.6 mm* |
10.7 mm |
|
30.0 – 120.5 mm |
7.0 x 0.6 mm* |
13 mm |
|
18.0 – 120.5 mm |
7.0 x 0.8 mm |
10.7 mm |
|
30.0 – 120.5 mm |
7.0 x 0.8 mm |
13 mm |
* Available in Stainless Steel only
Heavy Duty Series
|
Size range |
width x thickness |
ear width |
|
24.5 – 120.5 mm |
10.0 x 0.8 mm |
10.7 mm |
|
30.0 – 120.5 mm |
10.0 x 0.8 mm |
13 mm |
|
24.5 – 120.5 mm** |
10.0 x 1.0 mm |
10.7 mm |
|
30.0 – 120.5 mm |
10.0 x 1.0 mm |
13 mm |
** Stainless Steel material size range starts at 30 mm
Sizes
- Diameter graduations 0.5 mm
|
Click to download : oet_tds_123_193_StepLess_Ear_Clamp Brochure Click to download : Oetiker_eMobility_Product_Brochure Click to download : Oetiker_Thermal_Management_BrochureMedical (Core) & Thermal Industry
Various Industry Products
Additional Information
| NESPL Code | CLAMPOET2 |
| Manufacturer Code | 123 & 193 |
| Manufacturer | Oetiker |
| Type | Clamps |
