ToothLock® Ear Clamps 293
#CLAMPOET1
Product Description

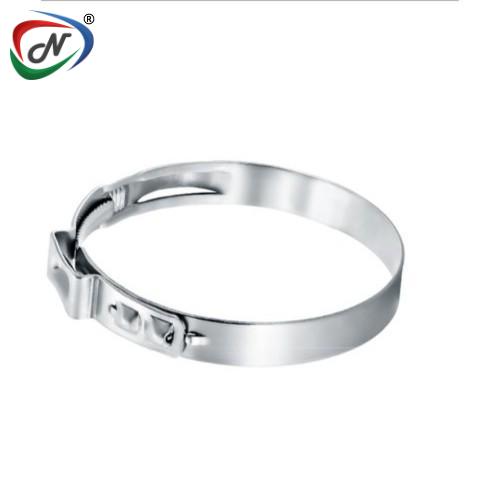

ToothLock® Ear Clamps 293
The innovative design removes any steps or overlaps along the inner circumference of the clamp, ensuring a leak-proof seal across 360 degrees. The "tongue-in-groove" mechanism, where the tongue fits into a groove, applies pressure uniformly around the assembled components, allowing the clamp to exert a consistent radial force throughout the entire diameter of the connection.
Main Features:
- 360° StepLess® Technology: uniform 360° compression
and uniform surface pressure.
- ToothLock® Technology: very high and permanent
compression rates, outstanding expansion resistance.
- Enlarged ear width (17 mm): enhanced clearance for
easy assembly, extended diameter range.
- Security hook: prevents unintended opening during
transport.
- Closed interlock: smooth outer contour supports
injury-free installation.
- Burr-free strip edges: reduced risk of damage to
parts being clamped
Main Benefits:
- Exceptional clamping efficiency
- Dependable assembly
- Robust sealing capabilities
- Installation that is user-friendly
Material
- 293 Stainless
Steel, material no. 1.4301/UNS S30400
Series:
|
Size range |
width × thickness |
ear width |
|
40.0 – 120.5 mm |
10.0 x 1.0 mm |
17 mm |
Click to download : ToothLock_Ear_Clamps CatalogueVarious Industry Products
Additional Information
| NESPL Code | CLAMPOET1 |
| Manufacturer Code | 293 |
| Manufacturer | Oetiker |
| Type | Clamps |
